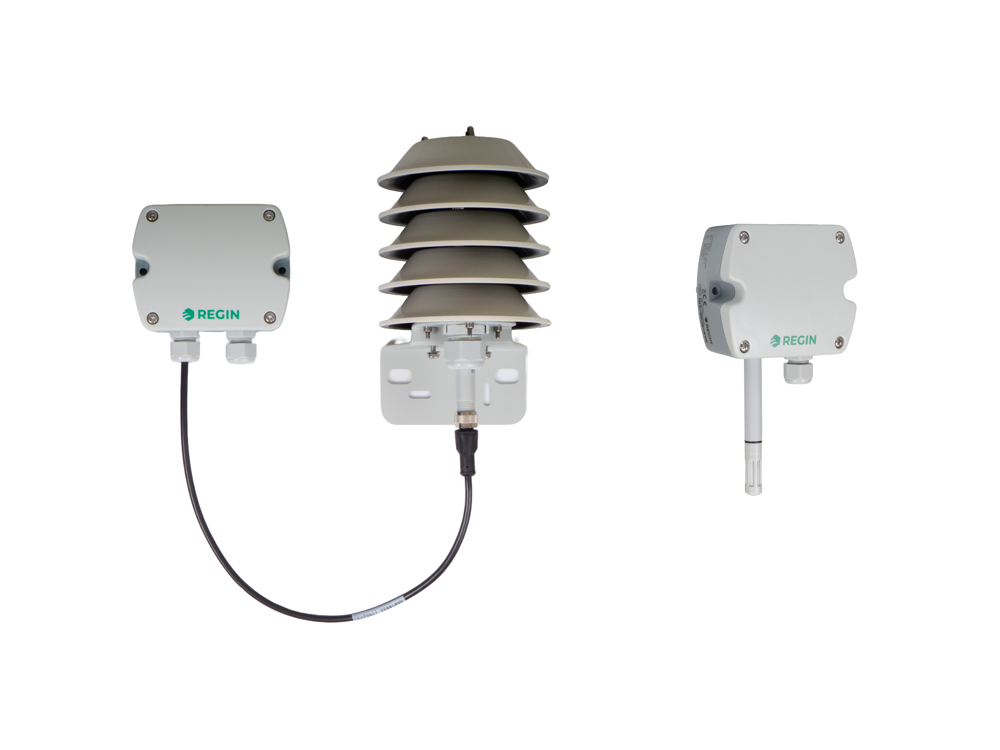

Humidity/temperature transmitter ±2 % RH, for harsh environments
Transmitter for relative humidity and temperature measurement in climate and air handling installations. HTWT10(-420) has high accuracy (±2 % RH) and excellent temperature compensation. It has very good protection against condensation and pollution, is easy to mount and has a robust sensor element.
Navigate on this page
Articles
(1 st)-
HTWT10Humidity and temperature transmitter- Mounting
- Wall
- Power Supply
- 24VAC (19...28 V AC 50Hz / ), VA
- Dimensions, external (WxHxD)
- 85x171x35 mm
- Analogue output load impedance 0...10v
- Min. 10 kΩ
- Measuring range, temp
- -20…80 °C
- Output temperature
- 0...10 V, corresponding to -20...+80°C, 0-10 V
- Sensor element, temperature 2
- PT1000
- Measuring range, humidity
- 0…100 % RH
- Output humidity
- 0-10 V
- Sensor element protection, humidity
- Membrane filter
- Temperature dependency, humidity
- Less than +/- 0.03 % RH/°C (at 60 % RH)
- Accuracy, humidity 1
- ±2 % RH @ 0...100 % RH
- Colour, cover
- Signal white RAL 9003
- Colour, base
- Grey RAL7035
Specifications
| Protection class | IP65 |
|---|---|
| Storage temperature | -40…60 °C |
| Mounting | Wall |
| Weight, incl. packaging | 0.2 kg |
| Accuracy, temperature | ±0.3 °K K |
| Accuracy, temperature 1 | ±0.3 °K @ ...20 |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Material, housing | Polycarbonate (PC) |
Software & documentation
Product sheet
Instructions
Accessories
HVS
Weather shield for outdoor mounting of HTWT10(-420)
