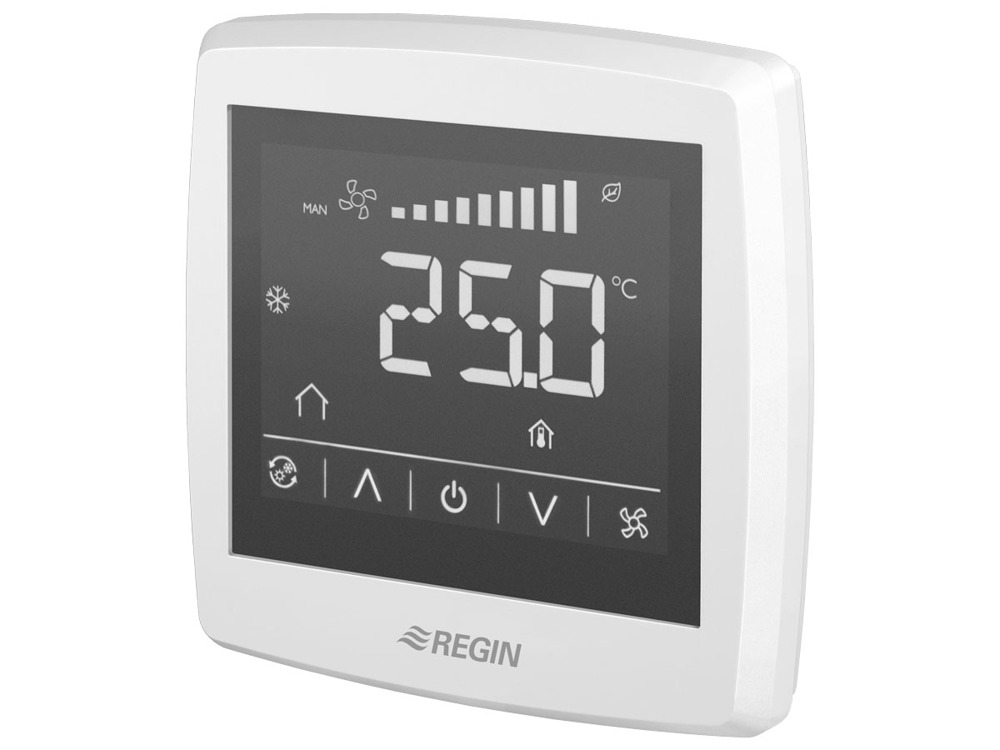

RCFD-230C RCFD-230C – Room thermostat with touch display and communication for fan-coil applications
Flush-mounted fan-coil controller with communication via RS485
Navigate on this page
Specifications
| Controller Type | Room Control |
|---|---|
| Power Supply | 230 V AC |
| Mounting | Wall mount |
| Display | Yes |
| Supported protocols | Modbus |
| Port type | RS-485 |
| Power Supply | 230VAC (207...253 V AC 50/60Hz / ), 3.0 VA |
| Dimensions, external (WxHxD) | 95x95x50 mm |
| Supported protocols | Modbus |
| AI | 1 |
| DI | 1 |
| DO | 5 |
| Colour, cover | RAL9003 |
| Protection class | IP30 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Mounting | Room |
| Weight, incl. packaging | 0.24 kg |
| Analogue inputs type (AI) | PT1000 |
| Digital outputs type (DO) | 230VAC/5A |
| Accuracy, temperature 1 | ±0.5 °K @ 0...50 °C |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, Fire resistance | UL 94 V-0 |
| Material, housing | Polycarbonate, PC |
