Regin

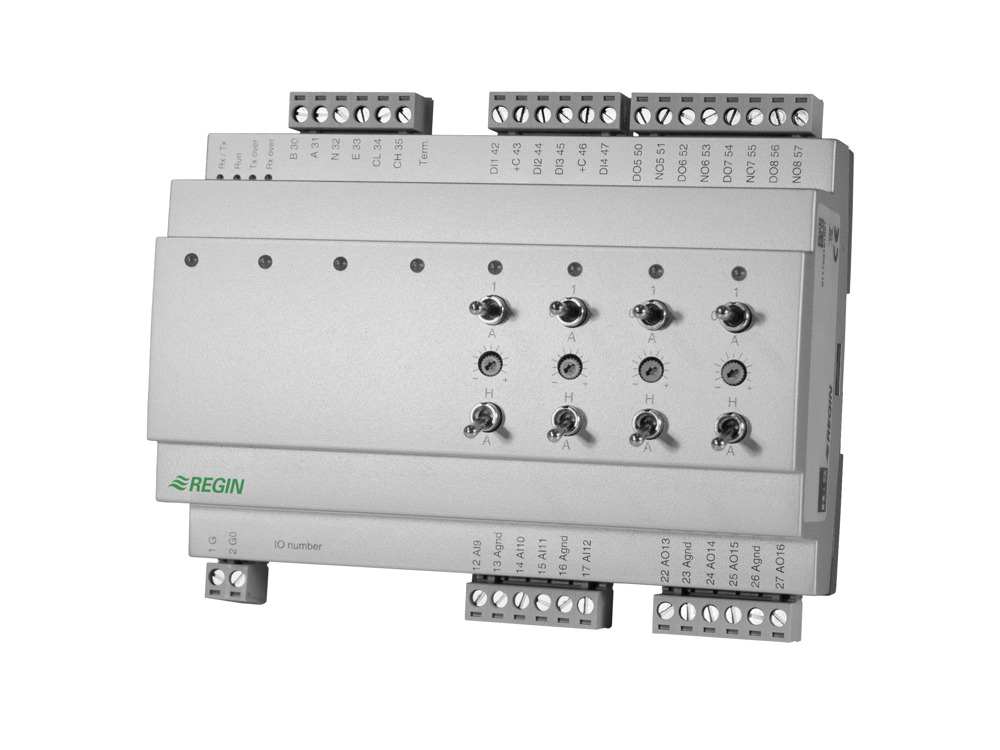

IO-4X4-M I/O module with 4 digital inputs, 4 analogue inputs, 4 digital outputs and 4 analogue outputs

Input and output module

Specifications

Specifications for IO-4X4-M
Controller Type I/O-Module
Power Supply 24V AC
Mounting DIN-rail
Display No
Supported protocols EXOline
Port type RS-485
Power Supply 24VAC (20...28 V AC 50Hz / ), 3.5 VA
Dimensions, external (WxHxD) 148x123x74 mm
Number of modules 8.5
Supported protocols EXOline
AI 4
DI 4
AO 4
DO 4
Specifications for I/O module with 4 digital inputs, 4 analogue inputs, 4 digital outputs and 4 analogue outputs
Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Mounting DIN-rail
