Regin

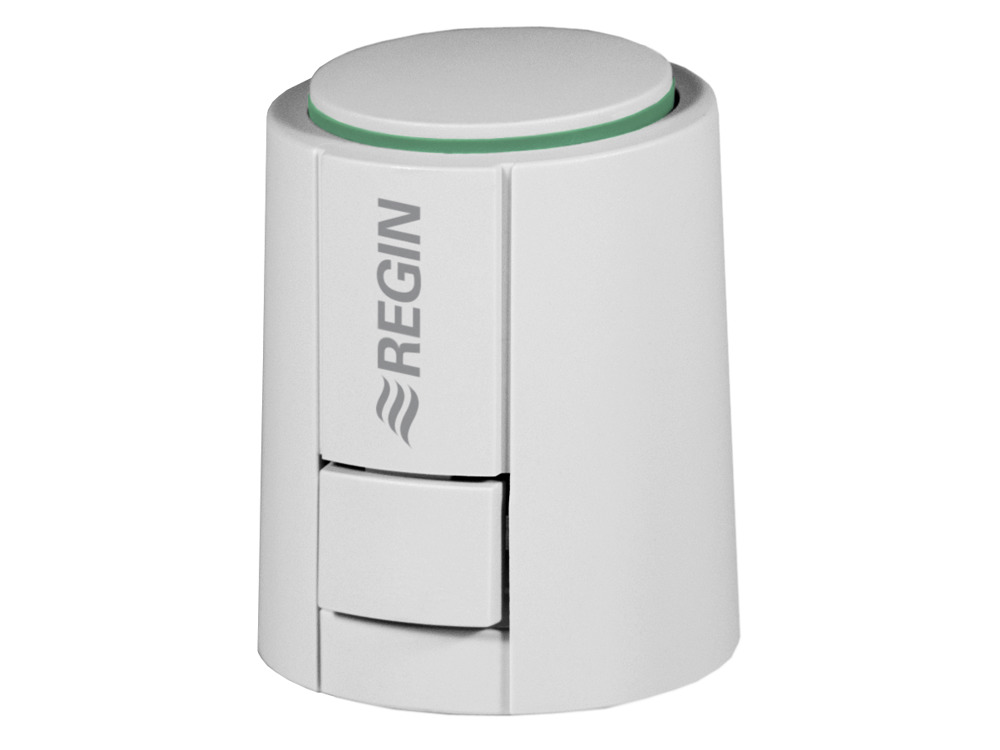

RTAM125-24 Thermal actuators 125 N, 6.5 mm stroke
Thermal actuator
Navigeer op deze pagina
Specificaties
| Force | 125 N |
|---|---|
| Supply voltage | 24 V AC/DC |
| Power consumption | 1.2 W, inrush current 300 mA during max. 2 min |
| Cable length | 2 m |
| Control signal | On/off, NC |
| Stroke length | 6.5 mm |
| Speed | 41.5 s/mm |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -25…65 °C |
| Connection towards valve | Snap-on, adapter between valve and actuator needed |
