Regin

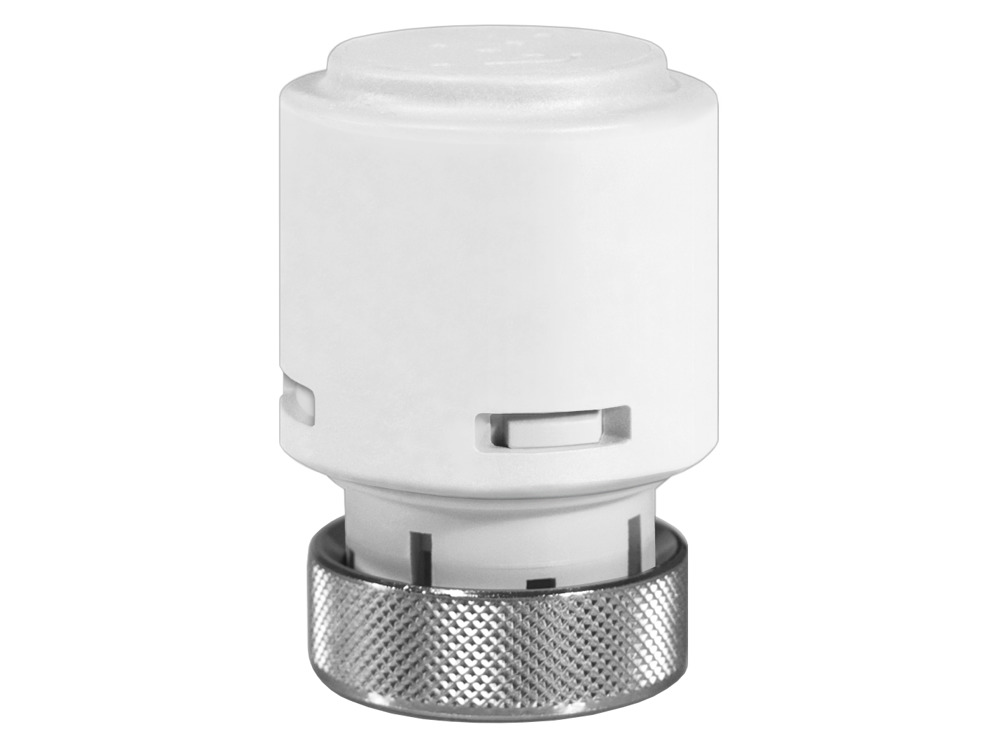

RTAN140-24A Thermal actuators 100/140 N, 2.5 mm stroke
Thermal actuator with position indicator for control of valves in heating or cooling systems. The actuator can be used to control radiator circuits, solar heating systems, heating or cooling coils, floor heating etc. To be combined with the VTTV/VTTR/VTTB range of valves.
Navigeer op deze pagina
Specificaties
| Force | 140 N |
|---|---|
| Supply voltage | 230 V AC |
| Power consumption | 3,5 VA |
| Cable length | 2 m |
| Control signal | 0...10 V DC, NC |
| Stroke length | 2.5 mm |
| Speed | 108 s/mm |
| Protection class | IP40 |
|---|---|
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -20…70 °C |
| Connection towards valve | Standard M30 x 1,5, mainly for valves VTTV/VTTR/VTTB |
