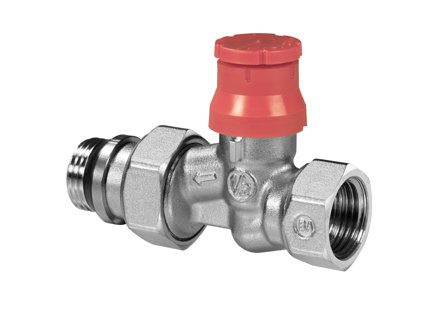

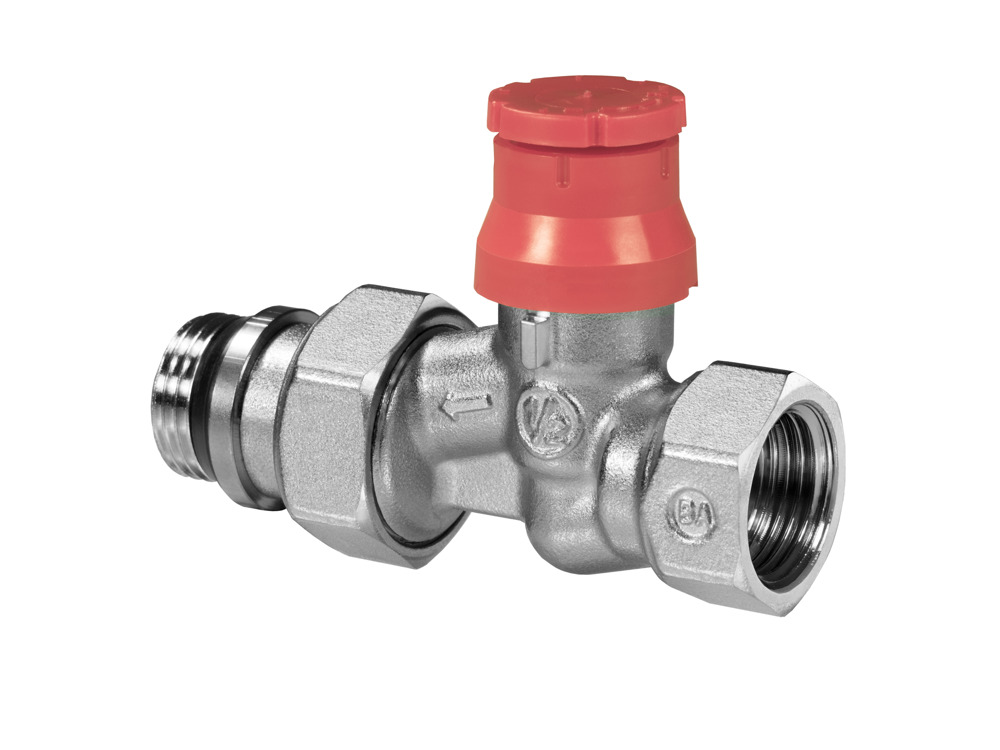

RV215 RV2 - 2-way radiator/zone valve, DN10-20, adjustable kvs
The zone valve is intended for zone control systems together with the thermal actuators in the RTA(O)M100 series or with the thermostatic heads TH-RV468/TH-RV470.
Navigate on this page
Specifications
| Nominal diameter | DN15 |
|---|---|
| Kvs (adjustable) | 0,15 - 0,41 m 3 /h |
| Actuator | RTA(O)M100… (with adapter VA26) |
| Application | Radiators, heating systems, cooling systems |
|---|---|
| Pressure rating | PN10 |
| Stroke | 3.5mm |
| Connection, actuator | Snap-on |
| Max. leakage | 0% of Kvs |
| Media | Hot water, cold water |
| Media temperature | 5…110°C |
| ΔPs | 140 kPa |
| ΔPmax | 30 kPa |
| Body | Brass CW617N |
| Protection lid with handwheel | PP-H |
| Stem | Stainless steel 1.4305 |
| Sealing | EPDM |
| O-rings | EPDM |
Software & documentation
Product sheet
Other documentation
Accessories
VA26
Adapter for RTA(O)M actuators
TH-RV468
Thermostatic head for RV2 valves
TH-RV470
Thermostatic head for RV2 valves
RVAZ2-24A
Electromechanical valve actuator
RVAZ2-24
Electromechanical valve actuator
RVAZ2-230
Electromechanical valve actuator
29214112001
Adapter, M28 to M30, for electromechanical actuator RVAZ2
RTAM100-24
Thermal actuator
RTAOM100-24
Thermal actuator
RTAOM100-24A
Thermal actuator
RTAM100-24A
Thermal actuator
RTAM100-230
Thermal actuator
RTAOM100-230
Thermal actuator
VA54
Adapter, M28 x 1.5 mm, for thermal actuator RTA(O)M
