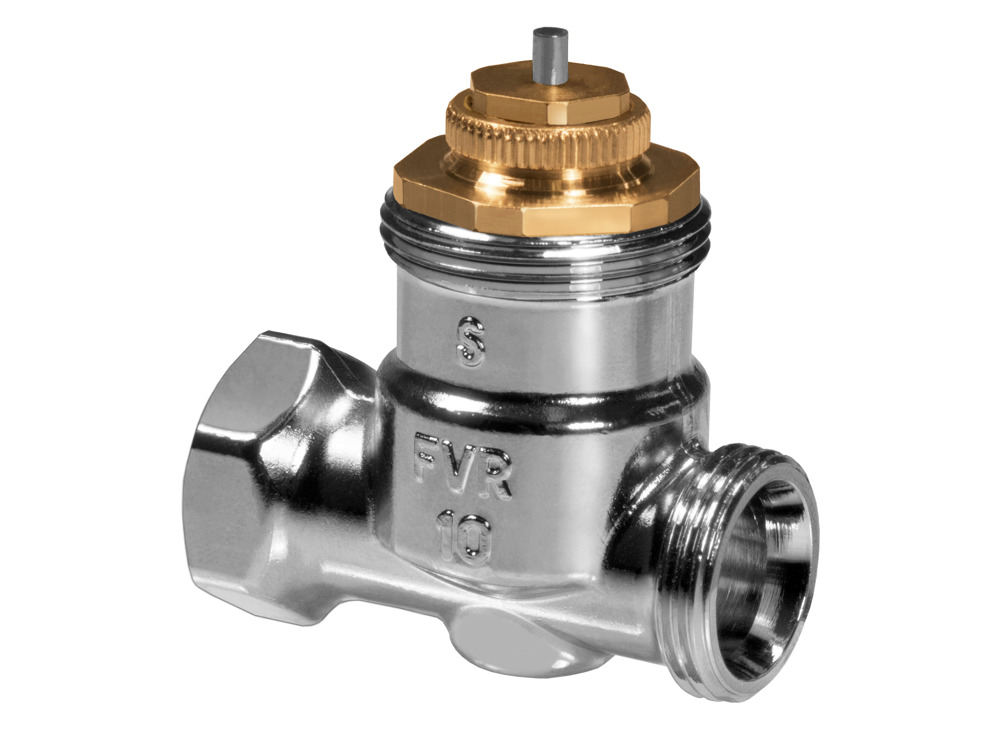

FVR - 2-way radiator/zone valve, DN10-20, adjustable kvs
This product is discontinued
This product is discontinued
The zone valve is intended for zone control systems together with the thermal actuators in the RTA(O)M100 series. The valve can control water flow to cooling as well as heating batteries, such as convectors, cooling ceilings etc.
Navigate on this page
Articles
(0 st)Specifications
| Pressure rating | PN10 |
|---|---|
| Connection, actuator | M28 x 1.5 |
| Max. leakage | 0 % of the kvs value |
| Media temperature | 2…90°C |
| Stroke | 1.7mm |
| Body | Chromed brass CW614N |
| Seat | Brass CW614N |
| Stem | Stainless steel 1.4305 |
| Packing box | EPDM |
| Bonnet | Brass CW614N |
Software & documentation
Product sheet
Accessories
Tail and nut, for valve outlet (external metric thread on the valve)
Tail and nut, for valve outlet (external metric thread on the valve)
Tail and nut, for valve outlet (external metric thread on the valve)
Nut and olive, for valve outlet (external metric thread on the valve)
Nut and olive, for valve outlet (external metric thread on the valve)
Nut and olive, for valve inlet (internal pipe thread on the valve)
Nut and olive, for valve inlet (internal pipe thread on the valve)
Nut and olive, for valve inlet (internal pipe thread on the valve)
Nut and olive, for valve inlet (internal pipe thread on the valve)
Nut and olive, for valve inlet (internal pipe thread on the valve)
Pre-set tooling, key and scale (FVR valves)
Pre-set tooling, basic key (FVR valves)
Electromechanical valve actuator
Electromechanical valve actuator
Electromechanical valve actuator
Adapter, M28 to M30, for electromechanical actuator RVAZ2
Thermal actuator
Thermal actuator
Thermal actuator
Thermal actuator
Thermal actuator
Thermal actuator
Adapter, M28 x 1.5 mm, for thermal actuator RTA(O)M
