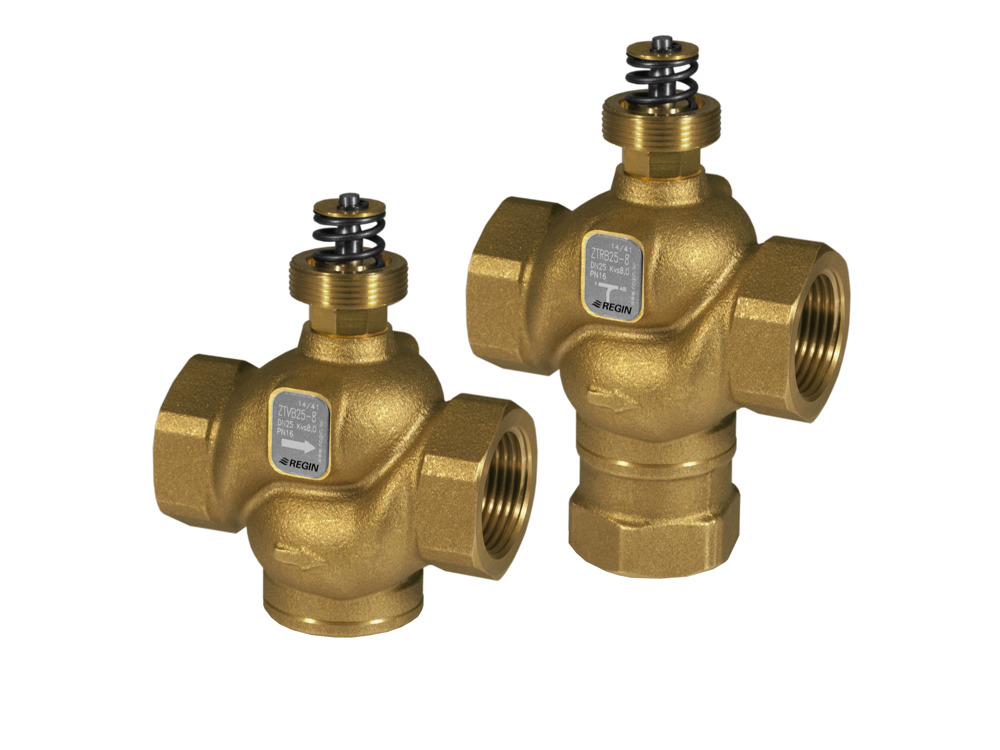

ZTVB / ZTRB - 2- and 3-way control valves, DN25-40, kvs 8-20, 5.5 mm stroke

Valves for control of heating and cooling in climate, heating and ventilation systems. They can also control glycol-mixed water in for example liquid recovery systems. The valves are intended to be used together with the RVAZ4 actuators. A hand wheel for manual operation is delivered with the valve.

Articles

(3 st)
  • ZTVB32-15 - Regin
    ZTVB32-15
    Nominal diameter
    DN32
    Connection
    G1 ¼"
    Kvs
    15 m 3 /h
    Max. diff. pressure
    150 kPa
    Actuator
    RVAZ4
  • ZTVB40-20 - Regin
    ZTVB40-20
    Nominal diameter
    DN40
    Connection
    G1 ½"
    Kvs
    20 m 3 /h
    Max. diff. pressure
    100 kPa
    Actuator
    RVAZ4
  • ZTRB32-15 - Regin
    ZTRB32-15
    Nominal diameter
    DN32
    Connection
    G1 ¼"
    Kvs
    15 m 3 /h
    Max. diff. pressure
    150 kPa
    Actuator
    RVAZ4

Specifications

Specifications for ZTVB / ZTRB - 2- and 3-way control valves, DN25-40, kvs 8-20, 5.5 mm stroke
Application Heating systems, cooling systems, fan-coil units, radiant cooling, ventilation systems
Pressure rating PN16
Connection, actuator M30 x 1.5
Connection BSP internally threaded according to ISO 228/1
Flow characteristics Linear
Max. leakage 0 % of the kvs value
Media Hot, cold or glycol-mixed water (max. 50 % glycol)
Media temperature 1…110°C
Rangeability 50:1
Stroke 5.5mm
Body Brass CW614N
Seat Brass CW614N
Plug Brass CW614N
Stem Stainless steel 1.4305
Seat packing EPDM
O-rings EPDM
