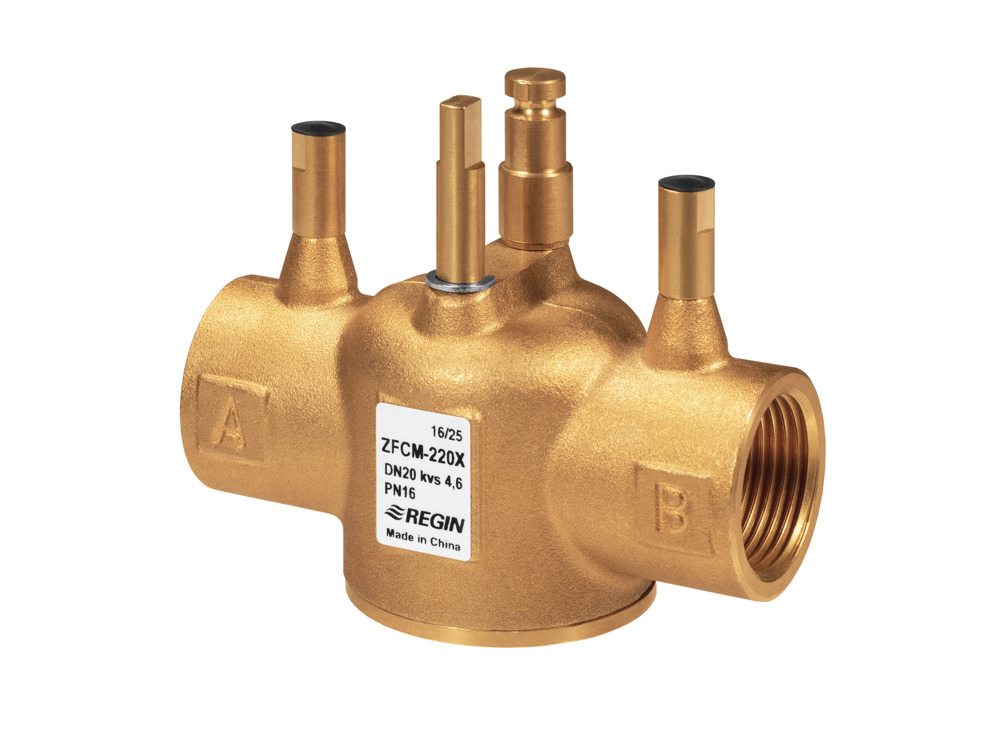

ZFCM-232X ZFCM - 2- and 3-way on/off valves, DN15-32, kvs 3.2-10
Valves intended for on/off control of hot or cold water in heating or cooling systems. The valves can only be used together with Regin's RVAFC actuators. The valves are available as both 2- and 3-way models.
Navigate on this page
Specifications
| Connection | G1 1/4"" |
|---|---|
| Actuator connection | Standard for RVAFC-2302 actuators |
| Nominal diameter | DN32 |
| Kvs | 10 m³/h |
| Max. diff. pressure | 80 kPa |
| Media temperature | 2…94 °C |
| Application | Fan coil |
|---|---|
| Pressure rating | PN16 |
| Connection types | BSP internally threaded according to ISO 228/1 |
| Flow characteristics | Equal percentage |
| Leakage | 0.0 % of Kvs (PTFE gasket, carbon-filled 25 %, no leakage) |
| Media | Hot water, Cold water, Glycol-mixed water (max. 50 % glycol) |
| Angle of rotation | 20 ° |
| Closing direction | When stem is pushed inward |
| Max. diff. pressure | 200 kPa |
| Media temperature | 2…94 °C |
| Body | Brass CW614N |
| Seat | Brass CW614N |
| Plug | Stainless steel 1.4305 |
| Stem | Brass CW614N |
| Ball | NBR |
| Seat packing | PTFE (carbon filled 25 %) |
| O-rings | EPDM |
| Stuffing box | Brass CW614N |
Software & documentation
Product sheet
Other documentation
Accessories
RVAFC-2302
Actuator for ZFCM-2 valves
RVAFC-2303
Actuator for ZFCM-3 valves
