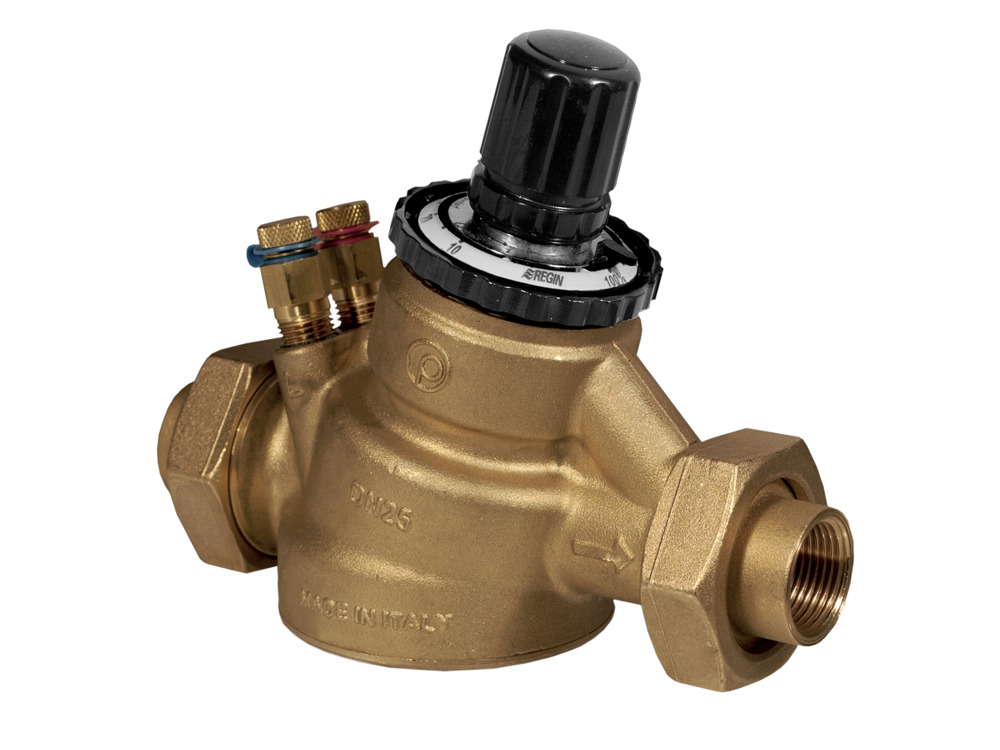

PCMTV32-F3000 PCMTV / PCTVS - Pressure independent control valves, DN15-32, 2.7/6 mm stroke
Pressure independent control valves, DN15-25, 2.7 mm stroke. The valve is a combined differential pressure regulator, flow limiter and equal percentage control valve with full stroke and authority. The pressure independent control valves are suitable for constant or variable temperature systems and can be used as constant flow limiters in constant volume systems (with no actuators), or as pressure independent control valves in variable volume systems (with actuators).The PICV valves DN15-25 are intended to be used together with Regin's RVAPC..or RTAM100 actuators.
The PICV valves DN20-32 are intended to be used together with Regin's RVAPC..or RTAM125 actuators.
Navigate on this page
Specifications
| Connection | G1 1/4" |
|---|---|
| Actuator connection | M28 x 1,5 |
| Rangeability | 100 ~ 150:1 |
| Stroke | 6 mm |
| Nominal diameter | DN32 |
| Max. diff. pressure | 600 kPa |
| Max. start-up pressure | 35 kPa |
| Flow rate intervall setting | 300…3000 l/h |
| Media temperature | -10…120 °C |
| Application | Heating, Cooling, Ventilation, Fan coil, Chilled beams |
|---|---|
| Pressure rating | PN25 |
| Connection types | BSP internally threaded according to ISO 228/1 |
| Flow characteristics | Equal percentage |
| Leakage | 0.01 % of Kvs () |
| Media | Hot water, Cold water, Glycol-mixed water (max. 50 % glycol) |
| Closing direction | When stem is pushed inward |
| Max. diff. pressure | 600 kPa |
| Media temperature | -10…120 °C |
| Body | Brass CW617N |
| Seat | Brass CW617N |
| Plug | Brass CW614N |
| Stem | Stainless steel 1.4305 |
| Seat packing | EPDM |
| O-rings | EPDM |
| Stuffing box | Dezincification resistant brass CW 602N |
| Pressure regulator | EPDM, stainless steel and high resistance polymer |
| Gasket | EPDM |
