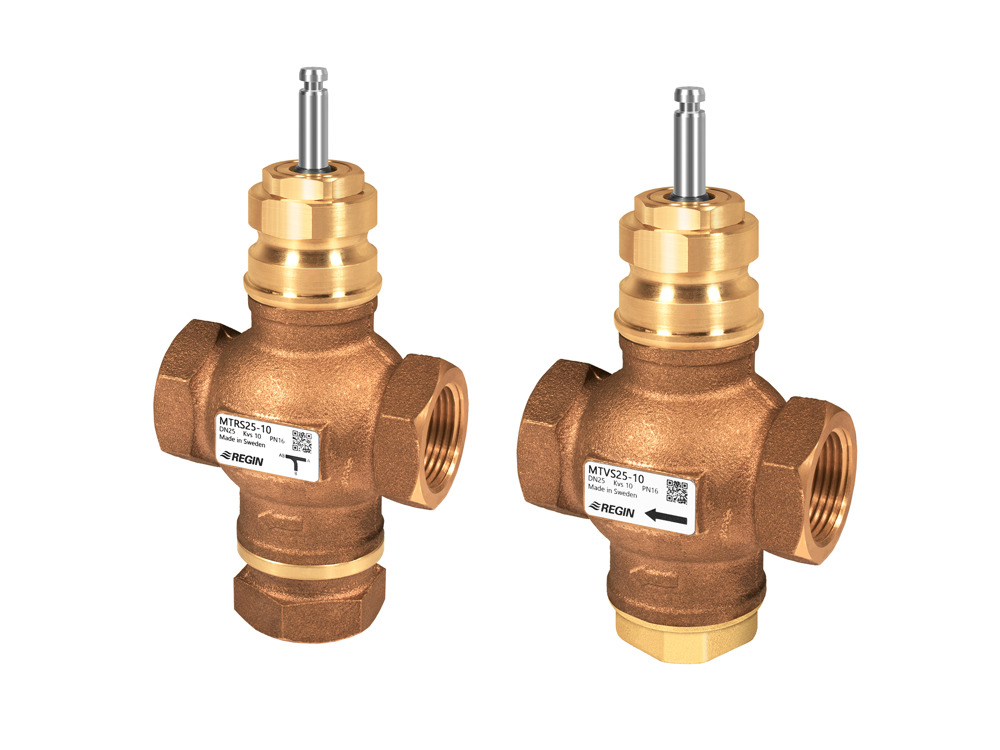

MTVS, MTRS - 2- and 3-way control valves, DN15-50, kvs 0.63-39, 20 mm stroke, DZR

Valves designed for control of hot, cold or glycol-mixed water in heating and ventilation systems. They also function very well where DZR-material is a requirement (DZR = Dezincification Resistant). The valves are intended for use together with Regin’s RVAN5 actuators. RVAN10 actuators can also be used if larger actuating force is required.

Specifications
Software & documentation
Accessories

Articles

(22 st)
  • MTVS15-0,63 - Regin
    MTVS15-0,63
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    0.63 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS15-1,0 - Regin
    MTVS15-1,0
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    1 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS15-1,6 - Regin
    MTVS15-1,6
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    1.6 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS15-2,1 - Regin
    MTVS15-2,1
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    2.1 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS15-2,7 - Regin
    MTVS15-2,7
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    2.7 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS20-4,2 - Regin
    MTVS20-4,2
    Connection
    G 3/4"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN20
    Kvs
    4.2 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS20-5,6 - Regin
    MTVS20-5,6
    Connection
    G 3/4"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN20
    Kvs
    5.6 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTVS25-10 - Regin
    MTVS25-10
    Connection
    G 1"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN25
    Kvs
    10 m³/h
    Max. diff. pressure
    1400 kPa
    Media temperature
    -5…150 °C
  • MTVS32-16 - Regin
    MTVS32-16
    Connection
    G 1 1/4"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN32
    Kvs
    16 m³/h
    Max. diff. pressure
    800 kPa
    Media temperature
    -5…150 °C
  • MTVS40-27 - Regin
    MTVS40-27
    Connection
    G 1 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN40
    Kvs
    27 m³/h
    Max. diff. pressure
    600 kPa
    Media temperature
    -5…150 °C
  • MTVS50-39 - Regin
    MTVS50-39
    Connection
    G 2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN50
    Kvs
    39 m³/h
    Max. diff. pressure
    400 kPa
    Media temperature
    -5…150 °C
  • MTRS15-0,63 - Regin
    MTRS15-0,63
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    0.63 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS15-1,0 - Regin
    MTRS15-1,0
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    1 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS15-1,6 - Regin
    MTRS15-1,6
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    1.6 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS15-2,1 - Regin
    MTRS15-2,1
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    2.1 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS15-2,7 - Regin
    MTRS15-2,7
    Connection
    G 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN15
    Kvs
    2.7 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS20-4,2 - Regin
    MTRS20-4,2
    Connection
    G 3/4"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN20
    Kvs
    4.2 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS20-5,6 - Regin
    MTRS20-5,6
    Connection
    G 3/4"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN20
    Kvs
    5.6 m³/h
    Max. diff. pressure
    1600 kPa
    Media temperature
    -5…150 °C
  • MTRS25-10 - Regin
    MTRS25-10
    Connection
    G 1"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN25
    Kvs
    10 m³/h
    Max. diff. pressure
    1400 kPa
    Media temperature
    -5…150 °C
  • MTRS32-16 - Regin
    MTRS32-16
    Connection
    G 1 1/4"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN32
    Kvs
    16 m³/h
    Max. diff. pressure
    800 kPa
    Media temperature
    -5…150 °C
  • MTRS40-27 - Regin
    MTRS40-27
    Connection
    G 1 1/2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN40
    Kvs
    27 m³/h
    Max. diff. pressure
    600 kPa
    Media temperature
    -5…150 °C
  • MTRS50-39 - Regin
    MTRS50-39
    Connection
    G 2"
    Actuator connection
    Standard for RVAN5.../RVAN10... actuators
    Rangeability
    100:1
    Stroke
    20 mm
    Nominal diameter
    DN50
    Kvs
    39 m³/h
    Max. diff. pressure
    400 kPa
    Media temperature
    -5…150 °C

Specifications

Specifications for MTVS, MTRS - 2- and 3-way control valves, DN15-50, kvs 0.63-39, 20 mm stroke, DZR
Application Heating, Cooling, Ventilation
Pressure rating PN16
Connection types BSP internally threaded according to ISO 228/1
Flow characteristics Equal percentage
Leakage 0.1 % of Kvs ()
Media Hot water, Cold water, Glycol-mixed water (max. 50 % glycol)
Closing direction When stem is pulled outward
Max. diff. pressure 1600 kPa
Media temperature -5…150 °C
Body Gunmetal CC491K
Seat Gunmetal CC491K
Plug Gunmetal CC491K
Stem Stainless steel 1.4305
O-rings EPDM
Stuffing box Dezincification resistant brass CW511L

Software & documentation

Product sheet

Other documentation

Accessories

S0603080300

Spare parts kit, packing box for ETRS, MTVS and MTRS valves (until 2019-12), for ETVS valves (until 2021-04)…

S2921357901

Spare parts kit, packing box for ETRS, MTVS and MTRS valves (from 2020-01) and for ETVS valves (from 2021-05)

STEMHEATER

Valve stem heater
