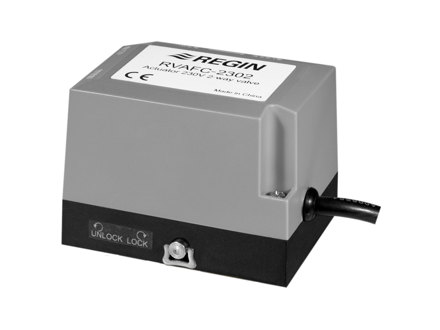

On/Off valve actuator for ZFCM valves
Regin

On/Off valve actuator for ZFCM valves

Actuator intended for on/off control of hot or cold water in heating or cooling systems. The actuator has a synchronous motor and spring return mechanism. It is intended for use together with Regin’s ZFCM valves.

Specifications
Software & documentation

Articles

(2 st)
  • RVAFC-2302 - Regin
    RVAFC-2302
    Actuator for ZFCM-2 valves
    Supply voltage
    230 V AC
    Power consumption
    6 VA
    Cable length
    0.9 m
    Control signal
    On/off, NC
    Running time, actuator
    15 s
    Running time, spring
    5 s
  • RVAFC-2303 - Regin
    RVAFC-2303
    Actuator for ZFCM-3 valves
    Supply voltage
    230 V AC
    Power consumption
    6 VA
    Cable length
    0.9 m
    Control signal
    On/off, NC
    Running time, actuator
    15 s
    Running time, spring
    5 s

Specifications

Specifications for On/Off valve actuator for ZFCM valves
Protection class IP44
Working angle, rotation 20 °
Connection towards valve Standard for ZFCM valves

Software & documentation

Product sheet

Instructions
