Regin

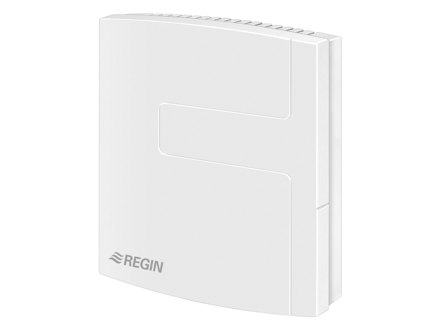

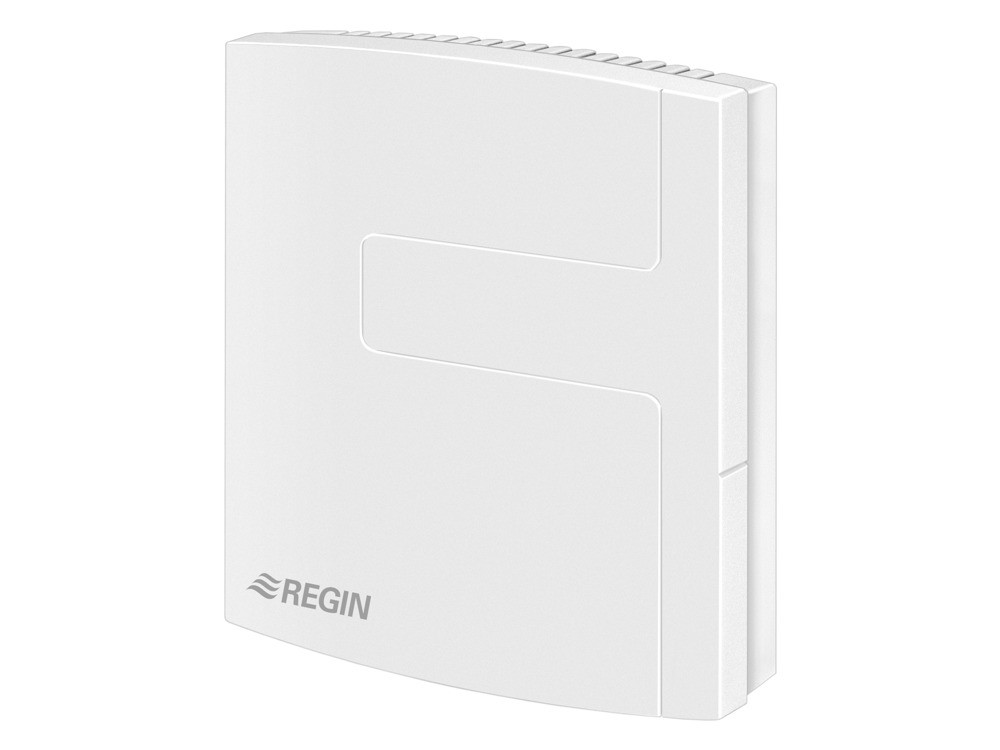

TRT5-420 Temperature transmitter for room mounting, 4…20 mA
Temperature transmitter
Navigate on this page
Specifications
Mounting | Wall |
---|---|
Power Supply | 24VDC (11...28 V DC) |
Dimensions, external (WxHxD) | 100x85x30 mm |
Measuring range, temp | 0…50 °C |
Output temperature | 4-20 mA |
Protection class | IP30 |
---|---|
Ambient humidity (non-condensing) | 10…90 % RH |
Storage temperature | -25…60 °C |
Mounting | Room |
Accuracy, temperature | ±0.5°C at 20 °C K |
Terminal type | Screw Terminal |
Terminal wire size | 1.5 mm² |
Material, housing | Polycarbonate (PC) |
Colour, housing | Signal white RAL 9003 |
