Humidity and temperature transmitter for room mounting, 0…10 V
Regin

Humidity and temperature transmitter for room mounting, 0…10 V

Transmitter for relative humidity and temperature measurement in indoor environments. It has good long-term stability and is resistant to contamination.

Specifications
Software & documentation

Articles

(2 st)
  • HTRT10A - Regin
    HTRT10A
    Humidity and temperature transmitter
    Power Supply
    24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.0 VA
    Dimensions, external (WxHxD)
    100x85x30 mm
    Measuring range, temp
    0…50 °C
    Output temperature
    0-10 V
    Sensor element, temperature 2
    PT1000
    Measuring range, humidity
    0…100 % RH
    Output humidity
    0-10 V

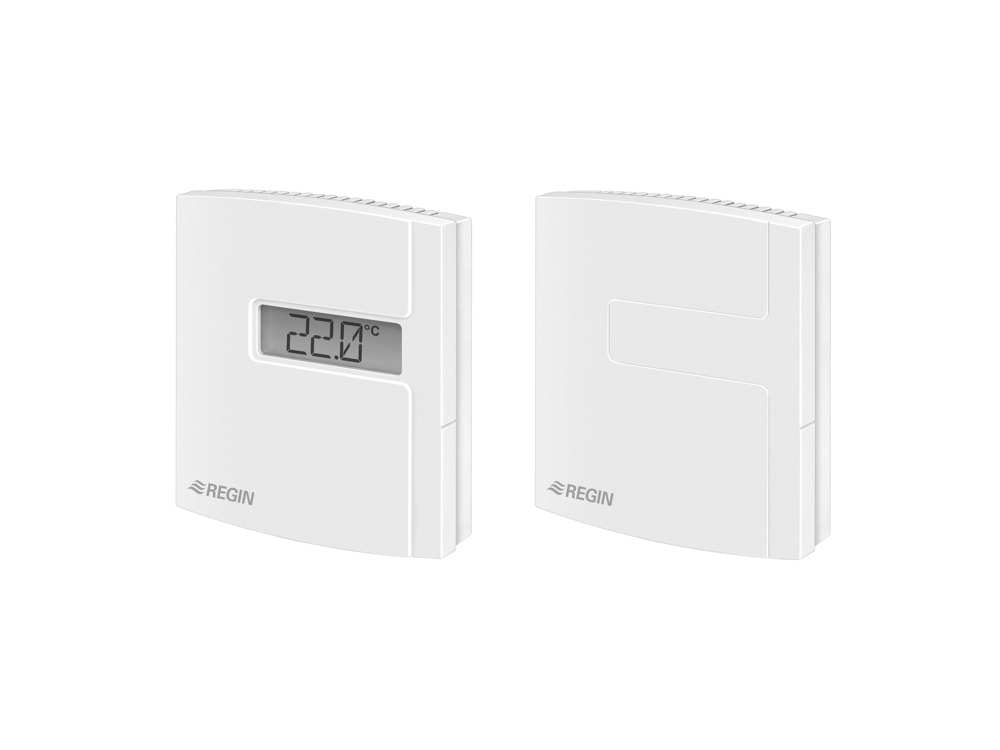

  • HTRT10A-D - Regin
    HTRT10A-D
    Humidity and temperature transmitter with display
    Power Supply
    24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.0 VA
    Dimensions, external (WxHxD)
    100x85x30 mm
    Display
    Yes
    Measuring range, temp
    0…50 °C
    Output temperature
    0-10 V
    Sensor element, temperature 2
    PT1000
    Measuring range, humidity
    0…100 % RH
    Output humidity
    0-10 V

Specifications

Specifications for Humidity and temperature transmitter for room mounting, 0…10 V
Protection class IP30
Ambient humidity (non-condensing) 10…90 % RH
Storage temperature -25…60 °C
Mounting Room
Accuracy, temperature ±0.3°C at 20 °C K
Accuracy, temperature 1 ±0.4 °K @ 0...50 °C
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, housing Polycarbonate (PC)
Colour, housing Signal white RAL 9003

Software & documentation

Product sheet

Instructions
