Regin

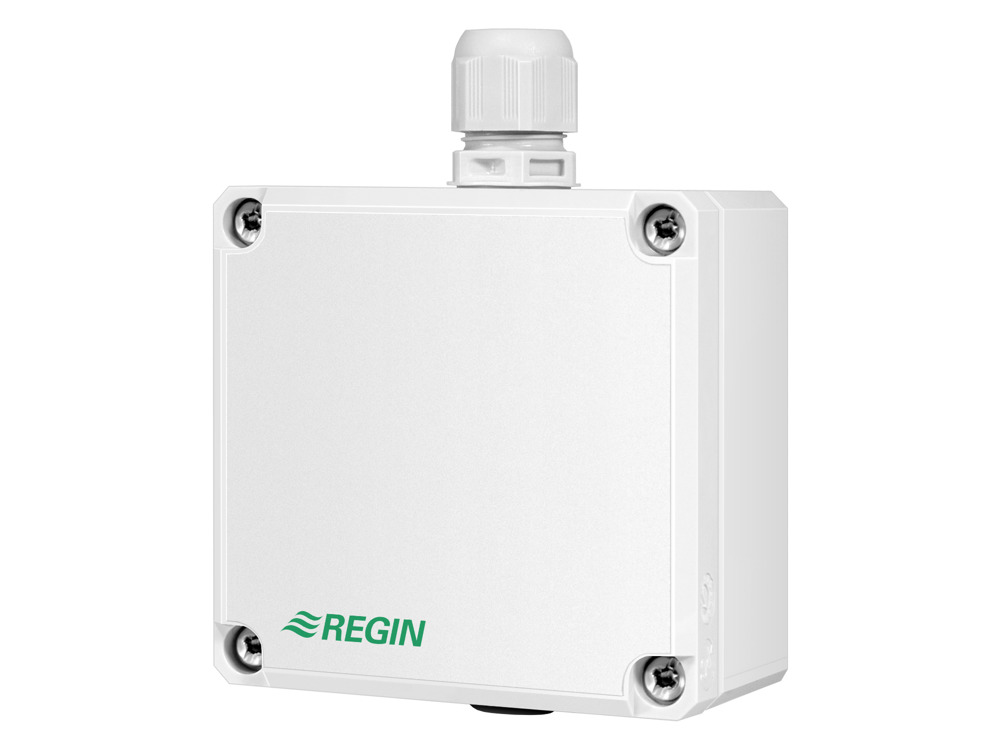

NO2F NO2 transmitter
NO2 transmitter
Navigate on this page
Specifications
| Mounting | Wall |
|---|---|
| Power Supply | 24VDC (12...28 V DC) |
| Dimensions, external (WxHxD) | 80x82x86 mm |
| Sensor type | CO |
| Measuring principle | Electrochemical |
| Accuracy | ±3 % |
| Measuring range, gas in air ppm | 0…300 ppm |
| Output signal, gas in air | 4-20mA |
| Lifetime sensor | ~ 2 years years |
| Response time | <35 s |
| Protection class | IP56 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Mounting | Wall |
| Weight, incl. packaging | 0.19 kg |
| Cable gland | M16x1,5 |
| Material, housing | Polycarbonate (PC) |
