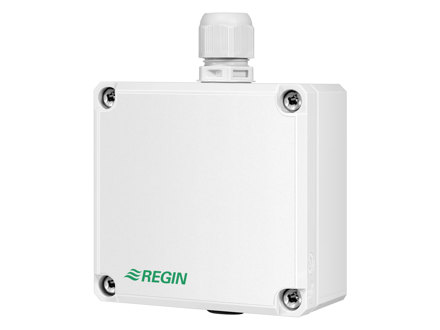

NO2 transmitter
NO2F measures the nitrogen dioxide concentration using an electrochemical method of measurement characterised by high selectivity even in low concentrations. The output signals are linear representations of the gas concentration.
The transmitter is TÜV-approved in accordance with VDI 2053.
Navigate on this page
Articles
(1 st)-
NO2FNO2 transmitter- Measurement
- NOx
- Sensor Interface
- 0-10 V, 4-20 mA
- Connector Housing
- Yes
- Display
- No
- Power Supply
- 24VDC (12...28 V DC)
- Ambient temperature
- -10…40 °C °C
- Dimensions, external (WxHxD)
- 80x82x86 mm
- Sensor type
- CO
- Measuring principle
- Electrochemical
- Accuracy
- ±3 %
- Measuring range, gas in air ppm
- 0…300 ppm
- Output signal, gas in air
- 4-20mA
- Lifetime sensor
- ~ 2 years years
- Response time
- <35 s
Specifications
| Protection class | IP56 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Mounting | Wall |
| Weight, incl. packaging | 0.19 kg |
| Cable gland | M16x1,5 |
| Material, housing | Polycarbonate (PC) |
