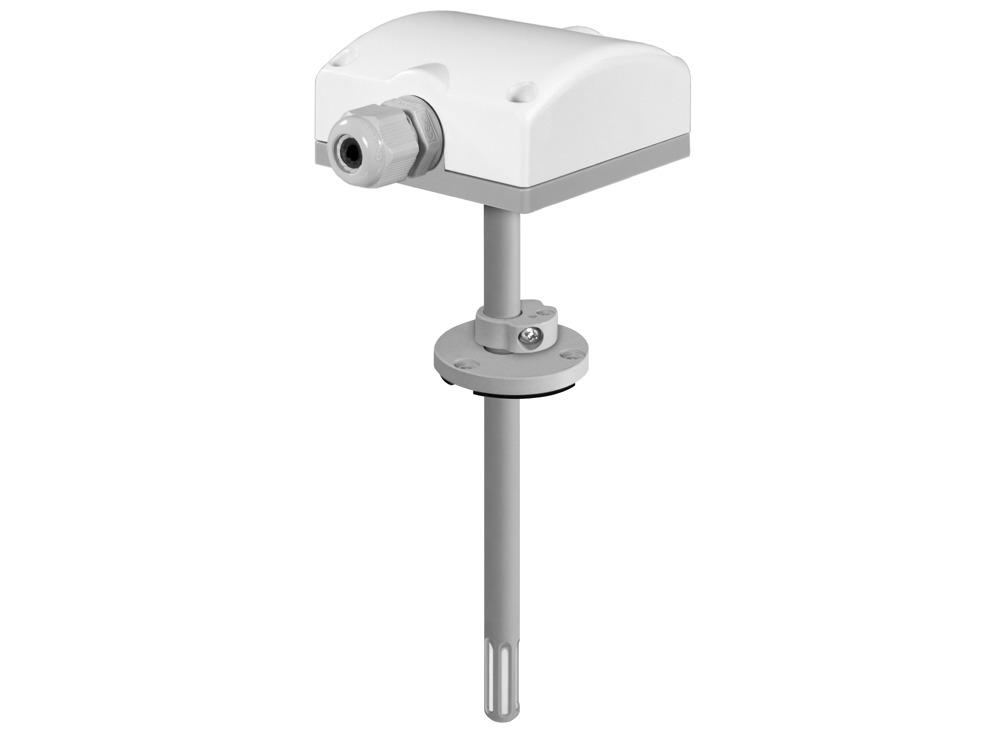

DTT4-420 Temperature transmitter for duct mounting
4…20 mA duct transmitter for temperature measurements in air.
Navigate on this page
Specifications
| Mounting | Duct |
|---|---|
| Power Supply | 24VDC (11...30 V DC) |
| Dimensions, external (WxHxD) | 75x266x75 mm |
| Media temp limits | 0…50 °C |
| Insertion length | 45…220 mm |
| Measuring range, temp | 0…50 °C |
| Output temperature | 4-20 mA |
| Protection class | IP65 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C |
| Weight, incl. packaging | 0.26 kg |
| Media | Air, non-combustible and non-aggressive gases |
| Accuracy, temperature 1 | ±1 °K @ 20...20 °C |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, cover | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
