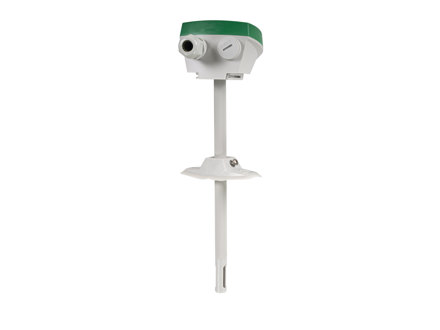

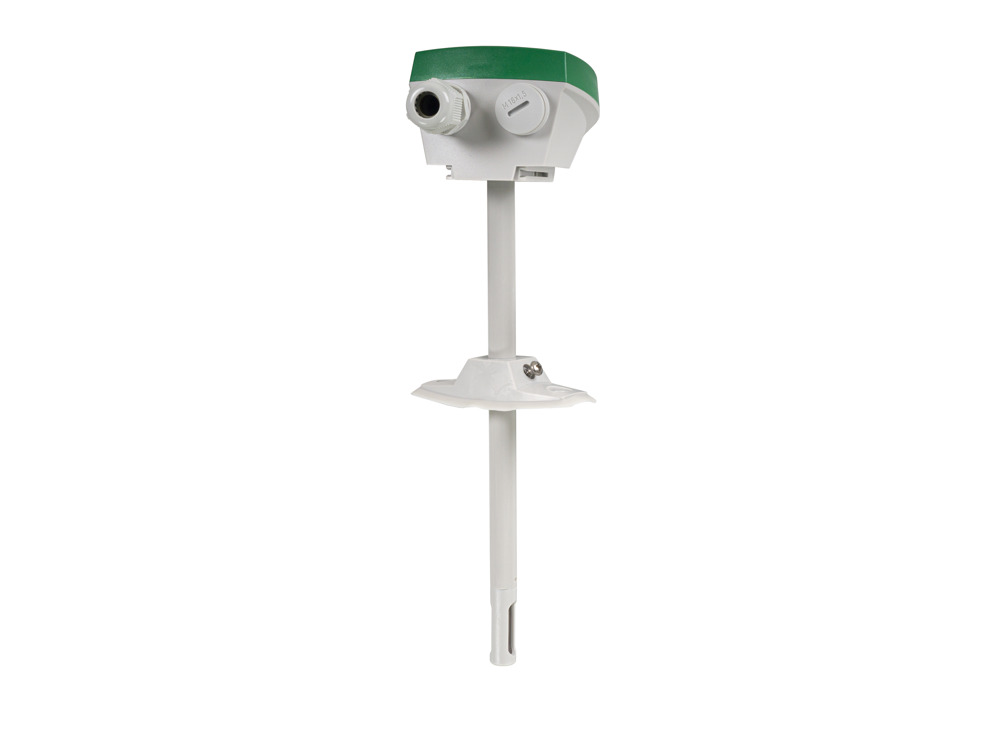

DTTC Temperature and CO 2 transmitter for duct mounting
0…10 V duct transmitter for temperature and carbon dioxide measurements in air.
Navigate on this page
Specifications
| Mounting | Duct |
|---|---|
| Power Supply | 24VAC/DC (20...28 V AC 50/60Hz / 15...35 V DC), 2.0 VA |
| Dimensions, external (WxHxD) | 104x212x79 mm |
| AO | 2 |
| Number of I/O | +2 |
| Max air velocity | 20 m/s |
| Media temp limits | -40…60 °C |
| Insertion length | 37…195 mm |
| Max Overvoltage on any terminal | +10 V (refereras till GND) V |
| Analogue output load impedance 0...10v | Min. 10 kΩ |
| Measuring range, temp | -40…60 °C |
| Output temperature | 0-10 V |
| Measuring range, gas in air | 0…2000 ppm |
| Output signal, gas in air | 0-10 V |
| Accuracy, gas in air | ±(50 ppm + 3 % of measured value) @ 25 °C |
| Response time | <100s |
| Warm-up time | 4min |
| Temperature dependance | 2.5 ppm/K at 0…50 °C |
| Protection class | IP65 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -40…80 °C |
| Storage humidity | 0...90 % RH |
| Weight, incl. packaging | 0.25 kg |
| Accuracy, temperature | 0,2 K |
| Accuracy, temperature 1 | ±0.2 °K @ 0...60 °C |
| Accuracy, temperature 2 | ±0.8 °K @ -40...0 & >60 °C |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polykarbonat (PC) |
| Material, cover | Polykarbonat (PC) |
| Material, base | ABS |
