Articles
(5 st)-
PDT12- Mounting
- Wall
- Power Supply
- 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.7 VA
- Dimensions, external (WxHxD)
- 120x40x112 mm
- Max Overvoltage on any terminal
- Max. ±18 V (referenced to GND) V
- Analogue output load impedance 0...10v
- Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
- Analogue output load impedance 4...20mA
- Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40...500Ω
- Pressure, range sensor
- 0…1250 Pa
- Accuracy, pressure sensor 1
- ≤ 1 % full scale %
- Max. allowed diff. Pressure sensor 1
- 25 kPa
-
PDT25
- Mounting
- Wall
- Power Supply
- 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.7 VA
- Dimensions, external (WxHxD)
- 120x40x112 mm
- Max Overvoltage on any terminal
- Max. ±18 V (referenced to GND) V
- Analogue output load impedance 0...10v
- Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
- Analogue output load impedance 4...20mA
- Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40...500Ω
- Pressure, range sensor
- 0…2500 Pa
- Accuracy, pressure sensor 1
- ≤ 1 % full scale %
- Max. allowed diff. Pressure sensor 1
- 50 kPa
-
PDT75
- Mounting
- Wall
- Power Supply
- 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.7 VA
- Dimensions, external (WxHxD)
- 120x40x112 mm
- Max Overvoltage on any terminal
- Max. ±18 V (referenced to GND) V
- Analogue output load impedance 0...10v
- Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
- Analogue output load impedance 4...20mA
- Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40...500Ω
- Pressure, range sensor
- 0…7500 Pa
- Accuracy, pressure sensor 1
- ≤ 1 % full scale %
- Max. allowed diff. Pressure sensor 1
- 120 kPa
-

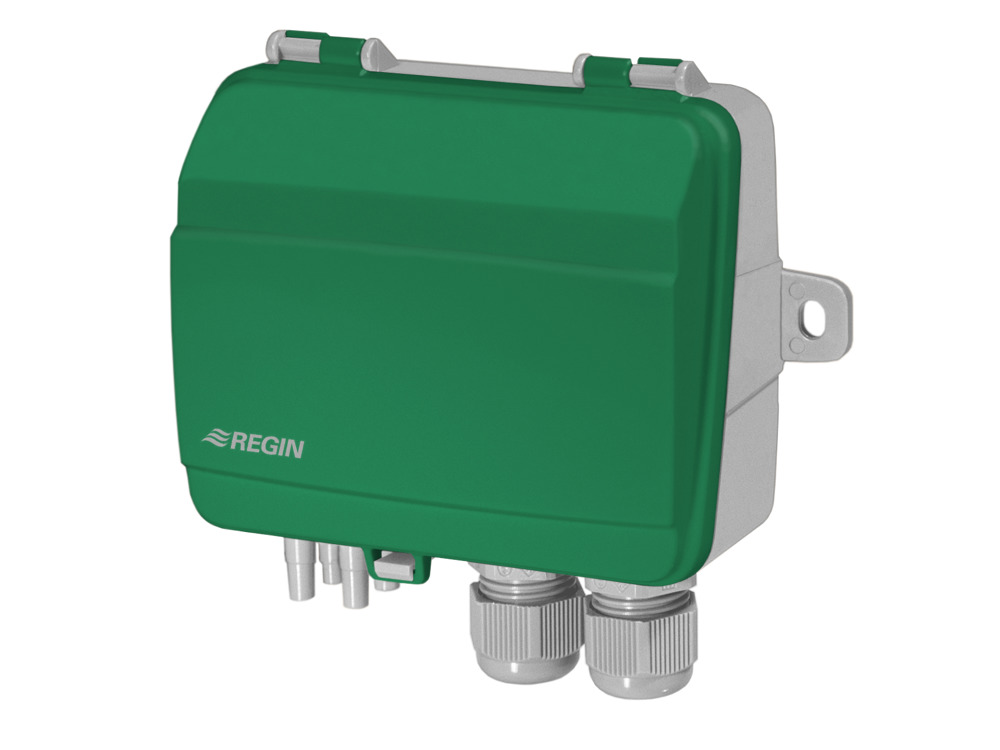

PDT12S25-2
- Mounting
- Wall
- Power Supply
- 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.7 VA
- Dimensions, external (WxHxD)
- 120x40x112 mm
- Max Overvoltage on any terminal
- Max. ±18 V (referenced to GND) V
- Analogue output load impedance 0...10v
- Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
- Analogue output load impedance 4...20mA
- Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40...500Ω
- Pressure, range sensor
- 0…1250 Pa
- Pressure, range sensor 2
- 0…2500 Pa
- Accuracy, pressure sensor 1
- ≤ 1 % full scale %
- Accuracy, pressure sensor 2
- ≤ 1 % full scale %
- Max. allowed diff. Pressure sensor 1
- 25 kPa
- Max. allowed diff. Pressure sensor 2
- 50 kPa
-
PDT12S75-2
- Mounting
- Wall
- Power Supply
- 24VAC/DC (21...27 V AC 50Hz / 21...27 V DC), 2.7 VA
- Dimensions, external (WxHxD)
- 120x40x112 mm
- Max Overvoltage on any terminal
- Max. ±18 V (referenced to GND) V
- Analogue output load impedance 0...10v
- Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
- Analogue output load impedance 4...20mA
- Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40...500Ω
- Pressure, range sensor
- 0…1250 Pa
- Pressure, range sensor 2
- 0…7500 Pa
- Accuracy, pressure sensor 1
- ≤ 1 % full scale %
- Accuracy, pressure sensor 2
- ≤ 1 % full scale %
- Max. allowed diff. Pressure sensor 1
- 25 kPa
- Max. allowed diff. Pressure sensor 2
- 120 kPa
Specifications
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Mounting | Wall |
| Media | Air, non-combustible and non-aggressive gases |
| Analogue outputs type (AO) | 0...10V or 4...20mA |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
