Regin

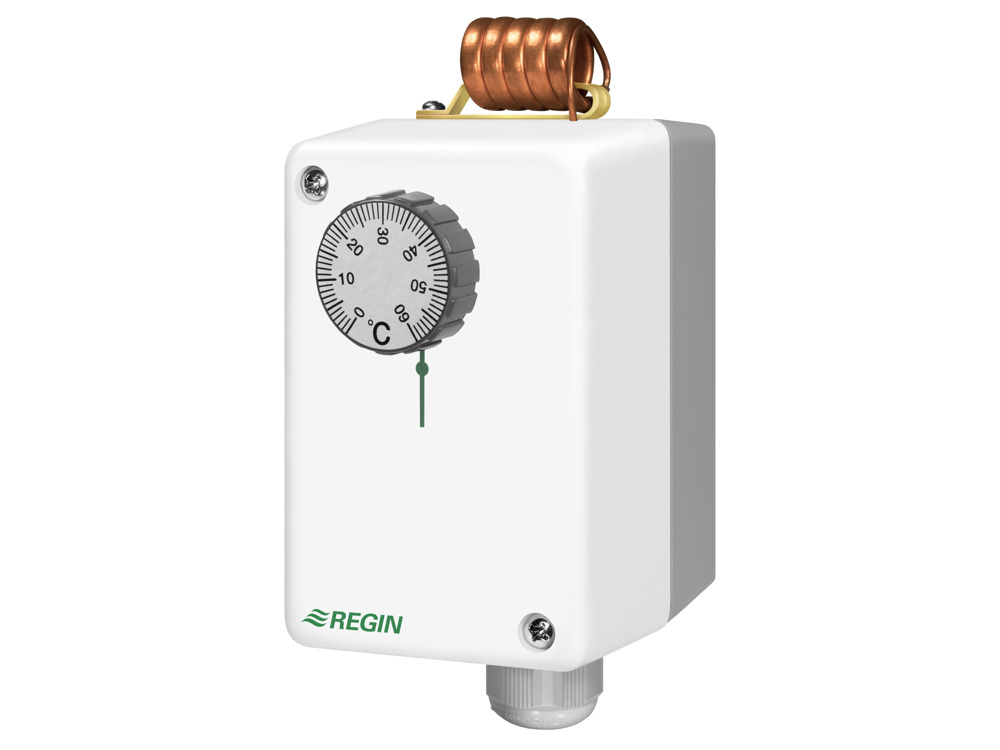

MTIR60 Wall thermostat, IP65
High quality thermostats for use in cooling, heating and ventilation systems.
Navigate on this page
Specifications
| Sensor element | Liquid-filled copper capillary |
|---|---|
| Electrical contact | SPDT microswitch |
| Switching capacity | 15 (8) A, 24…250 V AC |
| Setpoint value, temperature range | 0...60 °C |
| Step function | 1 |
| Hysteresis, temperature | 1 K |
| Reset function | Automatic |
| Setpoint adjustment | External |
| Dimensions, external (WxHxD) | 70x88x108 mm |
| Max. probe temperature | 65 °C |
|---|---|
| Appliance class | Class I |
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…65 °C |
| Storage humidity | 10...95 % RH |
| Weight, incl. packaging | 0.45 kg |
| Material, cover | ABS |
| Material, base | PC+ABS blend (Bayblend®) |
