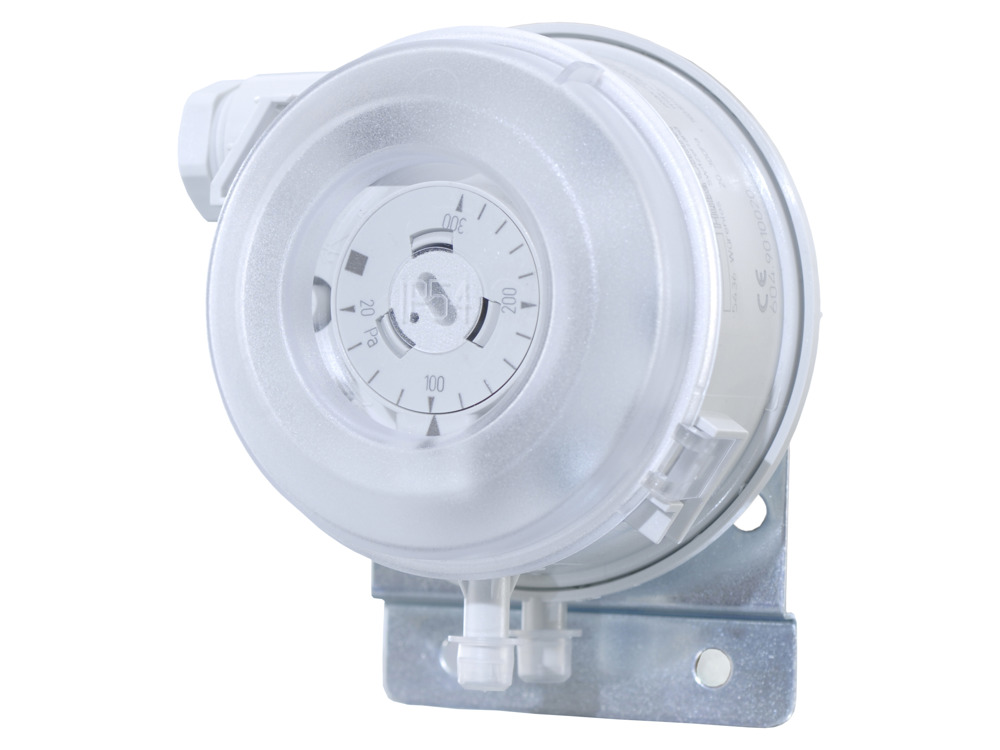

Differential pressure switch for air and non-corrosive gases
Regin

Differential pressure switch for air and non-corrosive gases

Differential pressure switches with excellent long-term stability.

Specifications
Software & documentation
Accessories

Articles

(3 st)
  • DTV500 - Regin
    DTV500
    Differential pressure switch
    Relay
    NO/NC
    Max. switching load
    5 A AC, 4 A DC
    Min. switching load
    0,8 A AC, 0,4 A DC
    Pressure, range sensor
    50…500 Pa
    Max. allowed diff. Pressure sensor 1
    5 kPa
    Hysteresis
    25 ± 8 Pa Pa
  • DTV1000 - Regin
    DTV1000
    Differential pressure switch
    Working range
    100...1000 Pa
    Hysteresis
    45 ± 11 Pa
  • DTV5000 - Regin
    DTV5000
    Differential pressure switch
    Working range
    1000...5000 Pa
    Hysteresis
    220 ± 30 Pa

Specifications

Specifications for Differential pressure switch for air and non-corrosive gases
Protection class IP54
Storage temperature -40…85 °C
Weight, incl. packaging 0.12 kg
Max Resistive load 5 A at 250 V AC, 4 A at 30 V DC
Max Inductive load 0.8 A at 250 V AC, 0.7 A at 30 V DC
Material, housing Fibreglass reinforced plastic
Material sensor Silicon LSR Membrane

Software & documentation

Product sheet

Instructions

Other documentation

Accessories

ANS-20

2 m plastic tube and two pressure outlets (straight)
