Regin

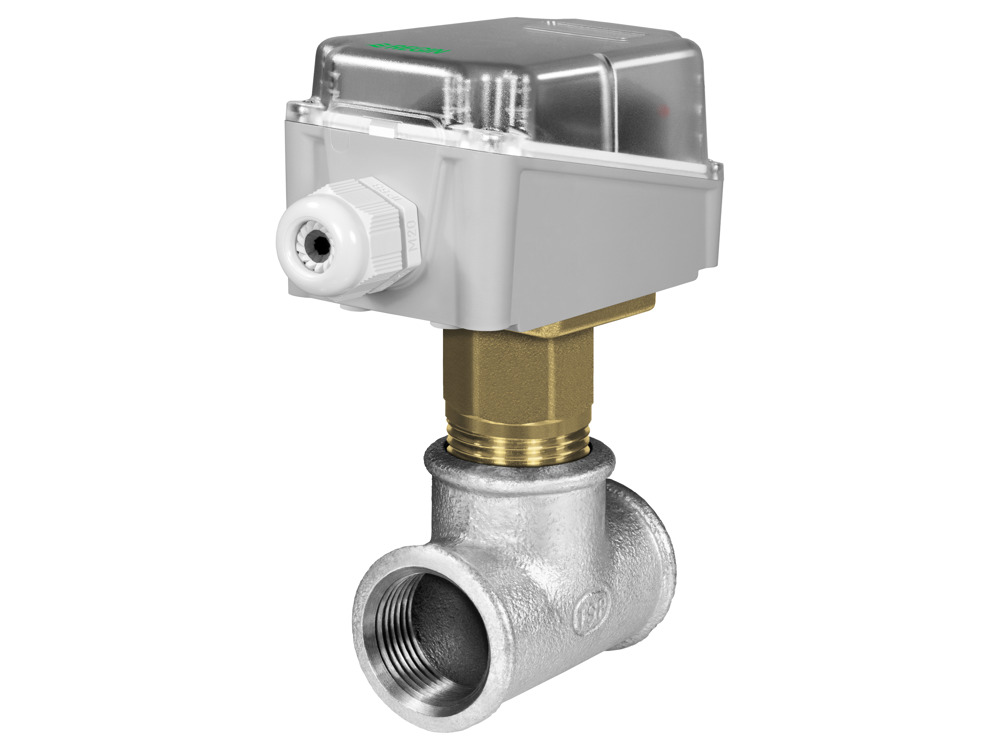

FLS308X Liquid flow switch
Electromechanical flow switches, suited for pipes of industrial plants: heating and air conditioning, refrigeration systems and heat pumps. Available in brass (suitable for normal media), and stainless steel AISI 316L (compatible with certain aggressive media).
Navigate on this page
Specifications
| Ambient temperature | -40…85 °C °C |
|---|---|
| Dimensions, external (WxHxD) | 140x62x65 mm |
| Material | stainless steel paddles AISI 316L |
| Body material | Brass, R3/4"" threaded |
| Max pressure | 1100 kPa |
| Media Temperature | -40...120 °C |
| Setpoint value, flow rate | 0.2...1 m³/h |
| Contact rating | 15 (8) A, 24...250 V AC |
| Appliance class | Class I |
|---|---|
| Protection class | IP65 |
| Ambient humidity (non-condensing) | 10…90 % RH |
| Storage temperature | -40…85 °C °C |
| Storage humidity | -20...85 % RH |
| Media | water and not aggressive liquid |
| Material, cover | Transparent PC |
| Material, base | ABS |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
FLZ-09
Paddles for liquid flow switch in stainless steel AISI 316L. (Only for FLS304... and FLS350... Not for FLS306X…
