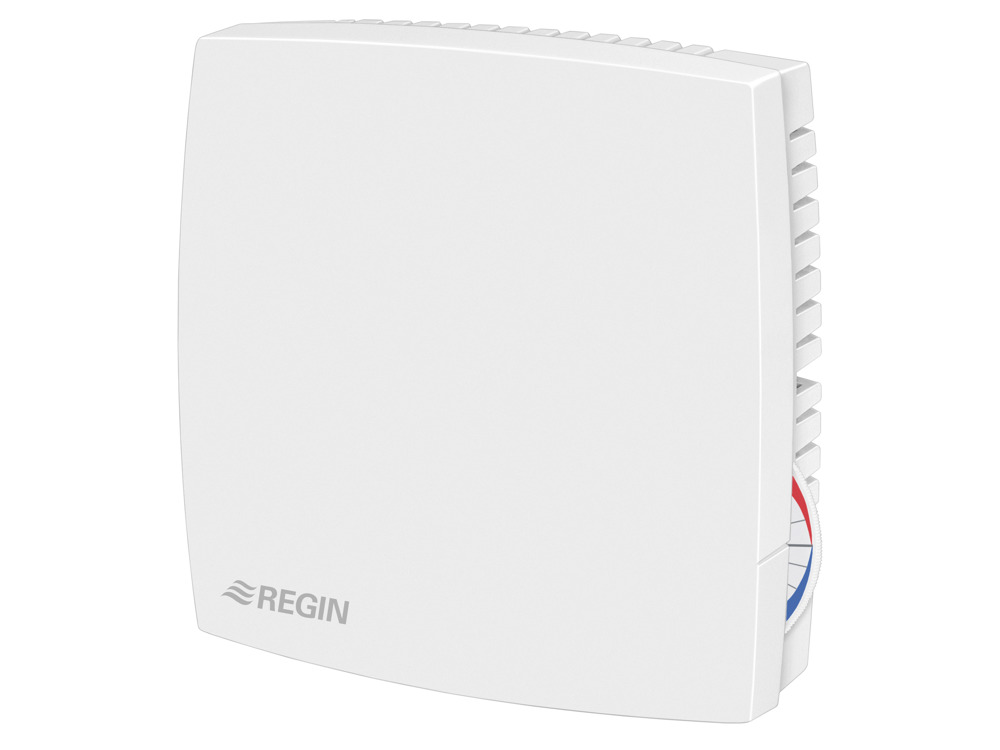

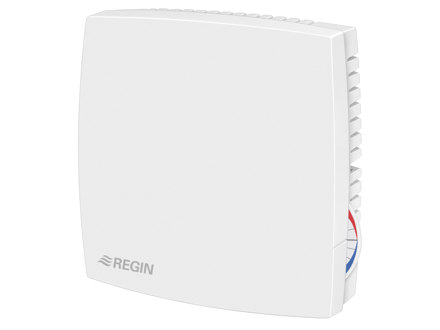

TG-R4/PT1000-RB Room sensor with setpoint adjustment
Room sensor with setpoint adjustment, red/blue (increase/decrease) scale
Navigate on this page
Specifications
| Dimensions, external (WxHxD) | 86x86x30 mm |
|---|---|
| Element type | Pt1000 |
| Measuring range, temp | 0…50 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω (0°C) |
| Setpoint range | 0…31 °C |
| Protection class | IP30 |
|---|---|
| Mounting | Room |
| Terminal type | Screw Terminal |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate |
| Colour, housing | Signal white RAL 9003 |
