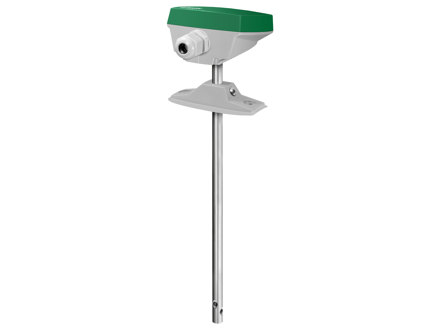

TG-KH3/PT1000-430 Duct sensor with housing
Duct sensor with housing
Navigate on this page
Specifications
| Mounting | Duct |
|---|---|
| Dimensions, external (WxHxD) | 78x263x104 mm |
| Media temp limits | -30…70 °C |
| Insertion length | 200…410 mm |
| Time constant | 16 s |
| Diameter, well | 8 mm |
| Element type | PT1000 |
| Measuring range, temp | -30…70 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω (0°C) |
| Protection class | IP65 |
|---|---|
| Mounting | Duct |
| Weight, incl. packaging | 0.19 kg |
| Cable gland | M16x1,5 |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
| Material sensor | Stainless steel, EU1.4301 (SUS304) |
