Regin

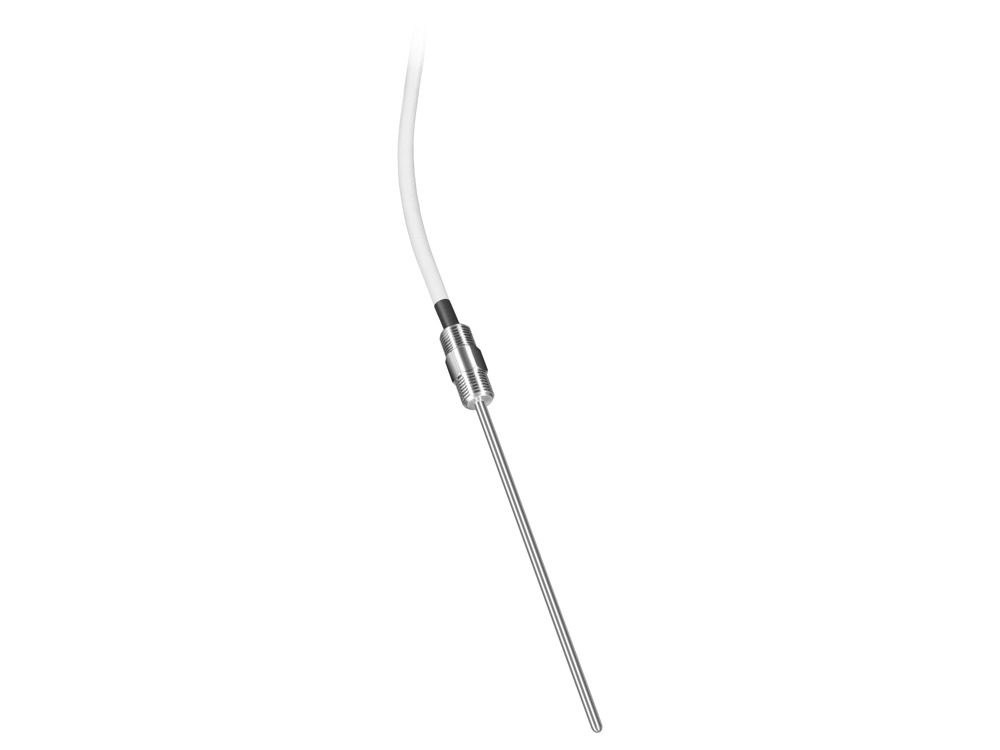

TG-D2/PT1000 Immersion sensor with fixed cable
Immersion sensor
Navigate on this page
Specifications
| Mounting | Immersion |
|---|---|
| Cable length | 1.5 m |
| Insertion length | …220 |
| Time constant | 4 s |
| Diameter, well | 4 mm |
| Element type | PT1000 |
| Measuring range, temp | -30…70 °C |
| Sensor element, class | DIN Class B: ±(0.3 + .005 |T|°C) |
| Nominal resistance | 1000 Ω/0°C |
| Protection class | IP65 |
|---|---|
| Pressure rating immersion | PN10 PN |
| (Well/Pressure) connection | R 1/4 " |
| Material cable | PVC |
| Material sensor | Stainless steel EU1.4301 (SUS304, SS2333) |
