Regin

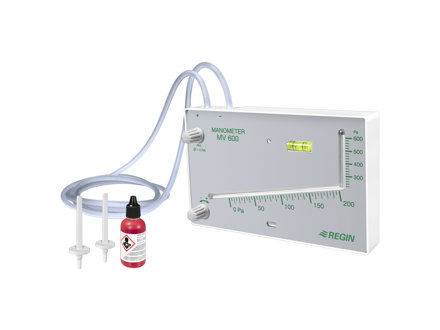

Differential pressure manometer
Device for high accuracy measurements. The manometer measures up to 600 Pa differential pressure with enhanced resolution between 0...200 Pa. Equipped with blow-out protection and a knob for zero-point adjustment. Max. total pressure 100 kPa.
MV600 is supplied with measuring fluid, pressure outlets, tubing, screws and an adhesive label for noting down the initial and final pressure drop.
Navigate on this page
Articles
(1 st)-
MV600Manometer- Dimensions, external (WxHxD)
- 210x140x33 mm
- Pressure, range sensor
- 0…600 Pa
- Accuracy, pressure sensor 1
- ±3 % %
- Max. allowed diff. Pressure sensor 1
- 100 kPa
