Freely programmable controllers

This product is discontinued

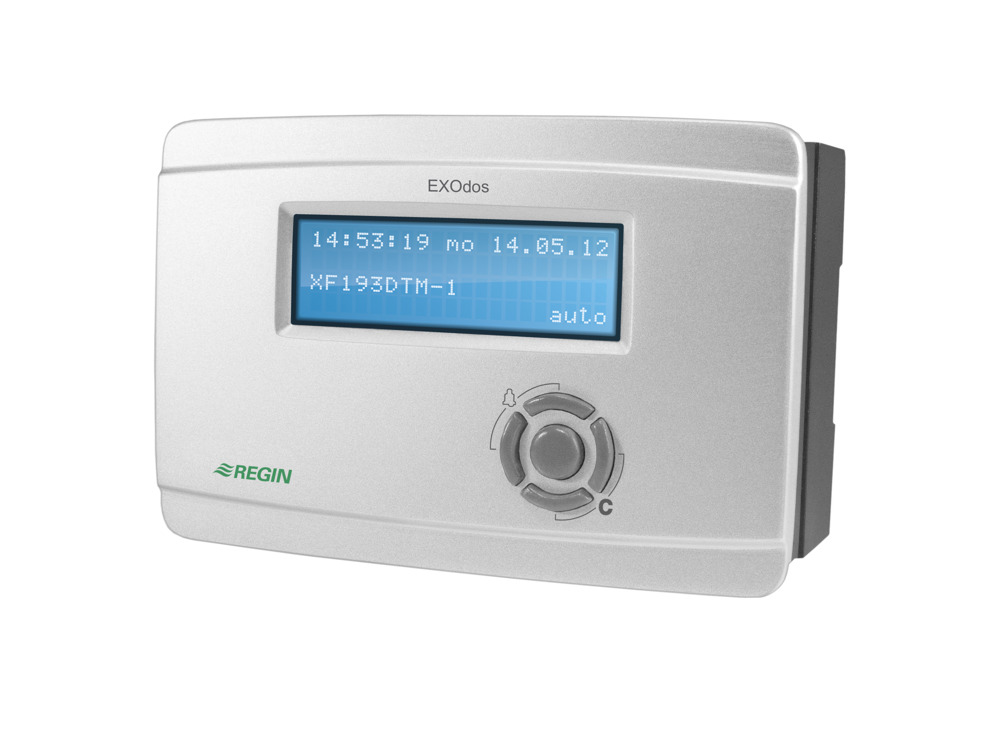

Small, compact controller with different types of communication and with or without built-in display. It can be used either as a stand-alone unit or as part of a larger system.

The EXOdos XF* controllers are BTL listed, click here to go to the BACnet International website where you'll find PICS documents and more information.

Articles

(0 st)

Specifications for Freely programmable controllers
Supply voltage	230 V AC +10%/-6%
Dimensions (WxHxD)	146.7 x 97.6 x 76.0mm
Mounting	In cabinet door, on DIN-rail or on wall, alt. over a device box
Protection class	IP20
Display	4 rows of 20 characters with backlight
Operating system	EXOrealC
Battery backup	Memory and real-time clock, at least 5 years
Ambient temperature	0…+50°C
Ambient humidity	Max. 95 % RH
Storage temperature	-20…+70°C
Ethernet	EXOline, Modbus, BACnet/IP
RS485	EXOline, Modbus
Analogue inputs (AI)	PT1000 (-50…+150°C)
Digital inputs (DI)	Potential-free closure
Analogue outputs (AO)	0…10 V DC
Digital outputs (DO)	7x relay, 230 V AC, 1 A inductive load, max. 7 A total
Universal analogue I/O (UA)	AI or AO
