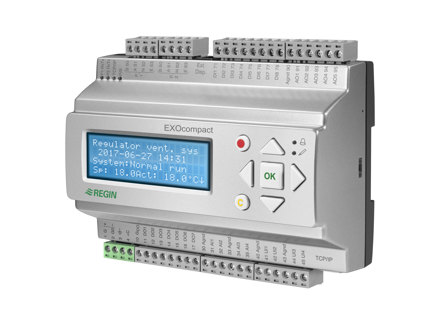

C152D-3 EXOcompact (generation 3) freely programmable controllers
8, 15 or 28 I/Os freely programmable controllers with RS485 (Modbus, EXOline) communication
The EXOcompact C*-3 controllers are BTL listed, click here to go to the BACnet International website where you'll find PICS documents and more information.
Specifications
| RS485 ports | 2 |
|---|---|
| Inputs | 8 |
| Outputs | 7 |
| Supply voltage | 24 V AC ±15%, 50…60 Hz or 20…36 V DC |
|---|---|
| Power consumption | 4 VA |
| BTL approval | EXOreal version 3.1-1-02 or later |
| +C output | + 24 V DC, 0.15 A, short-circuit proof |
| Operating system | EXOreal C |
| Battery backup | Memory and real-time clock, at least 5 years |
| Ambient temperature | 0…50°C |
| Storage temperature | -20…+70°C |
| Ambient humidity | Max. 95 % RH |
| Display | Backlit, LCD, 4 rows of 20 characters, international character set |
| Dimensions (WxHxD) | 149 x 121 x 60mm |
| Casing | Polycarbonate, PC |
| Protection class | IP20 |
| Mounting | DIN-rail or cabinet |
| Number of modules | 8.5 |
| Communication | RS485 (EXOline or Modbus with automatic detection/change-over), TCP (EXOline-TCP, BACnet/IP), M-Bus (using the external converter X1176) |
| Analogue inputs (AI) | 0(4)…20 mA, 0…10 V DC, 0…200 mV, PT1000, Ni1000 DIN, Ni1000 LG, 800…1600 Ω, 0…4000 Ω, 12-bit A/D |
| Digital inputs (DI) | Floating switch, 24 V DC, configurable for pulse input |
| Universal inputs (UI) | AI or DI (see above) |
| Analogue outputs (AO) | 0...10 V DC, 5 mA, 12-bit D/A, short-circuit proof |
| Digital outputs (DO) | Mosfet 24 V AC/DC, 2 A. Totally max. 8 A. |
| 24 V DC output | 0.15 A, short-circuit proof |
