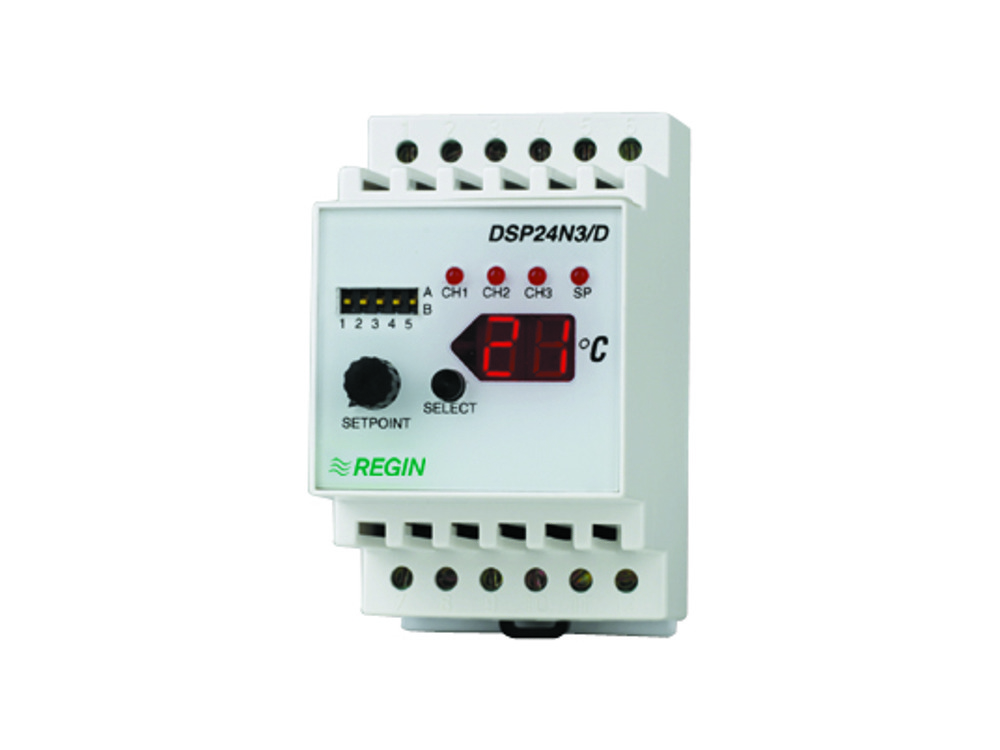

Display unit with temperature sensor inputs
Display unit showing the current temperature. Three inputs make it possible to connect up to three temperature sensors, for example a main sensor, a frost protection sensor and a min./max. limit sensor. Built-in setpoint adjustment.
The unit can be used independently, connected directly to a temperature sensor, or together with an electronic thermostat or a controller.
Navigate on this page
Articles
(0 st)Specifications
| Supply voltage | 24 V AC ±10 %, 5 VA |
|---|---|
| Sensor inputs | Three inputs for NTC-sensors |
| Temperature range | 0…60, 20…50, 40…70, 60…90°C |
| Channel 1 | 0...30, 20...50, 40...70, 60...90°C |
| Channel 2 | 0...60, -30...+30°C |
| Channel 3 | 0...30, 20...50, 40...70, 60...90°C |
| Mounting | DIN-rail |
| Number of modules | 3 |
| Protection class | IP20 |
