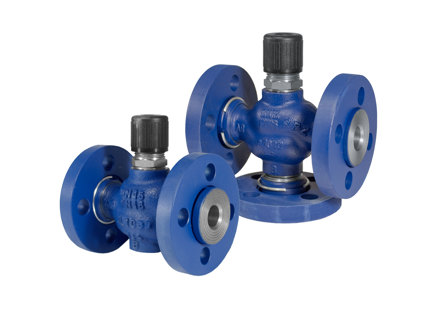

2- and 3-way flanged control valve
Regin

2- and 3-way flanged control valve

Control valves intended for use in heating and air conditioning systems together with the RVAZ4L1... series of electromechanical actuators. To be able to use the RVAZ4L1 actuator, an OVA-L1 model adapter is supplied with the valve.

Specifications
Software & documentation

Articles

(6 st)
  • MVFL215/3F - Regin
    MVFL215/3F
    Nominal diameter
    DN15
    Kvs
    1.6 m 3 /h
    Max. diff. pressure
    400 kPa
    Actuator
    RVAZ4L1
  • MVFL215/2F - Regin
    MVFL215/2F
    Nominal diameter
    DN15
    Kvs
    2.5 m 3 /h
    Max. diff. pressure
    400 kPa
    Actuator
    RVAZ4L1
  • MVFL220/F - Regin
    MVFL220/F
    Nominal diameter
    DN20
    Kvs
    6.3 m 3 /h
    Max. diff. pressure
    350 kPa
    Actuator
    RVAZ4L1
  • MVFL225/F - Regin
    MVFL225/F
    Nominal diameter
    DN25
    Kvs
    10 m 3 /h
    Max. diff. pressure
    200 kPa
    Actuator
    RVAZ4L1
  • MVFL315/2F - Regin
    MVFL315/2F
    Nominal diameter
    DN15
    Kvs
    2.5 m 3 /h
    Max. diff. pressure
    400 kPa
    Actuator
    RVAZ4L1
  • MVFL315/1F - Regin
    MVFL315/1F
    Nominal diameter
    DN15
    Kvs
    4 m 3 /h
    Max. diff. pressure
    400 kPa
    Actuator
    RVAZ4L1

Specifications

Specifications for 2- and 3-way flanged control valve
Application Heating systems, cooling systems, fan-coil units, ventilation systems
Pressure rating PN16
Connection Flanges according to ISO 7005-2
Flow characteristics Linear
Max. leakage < 0.0005 % of the kvs value
Media Hot water, cold water, glycol-mixed water
Media temperature 2…110°C
Rangeability 50:1
Stroke 5.5mm
Body Cast iron EN-JL 1030
Seat Stainless steel 1.4021
Plug Stainless steel 1.4021
Stem Stainless steel 1.4021
Seat packing EPDM
O-rings EPDM
