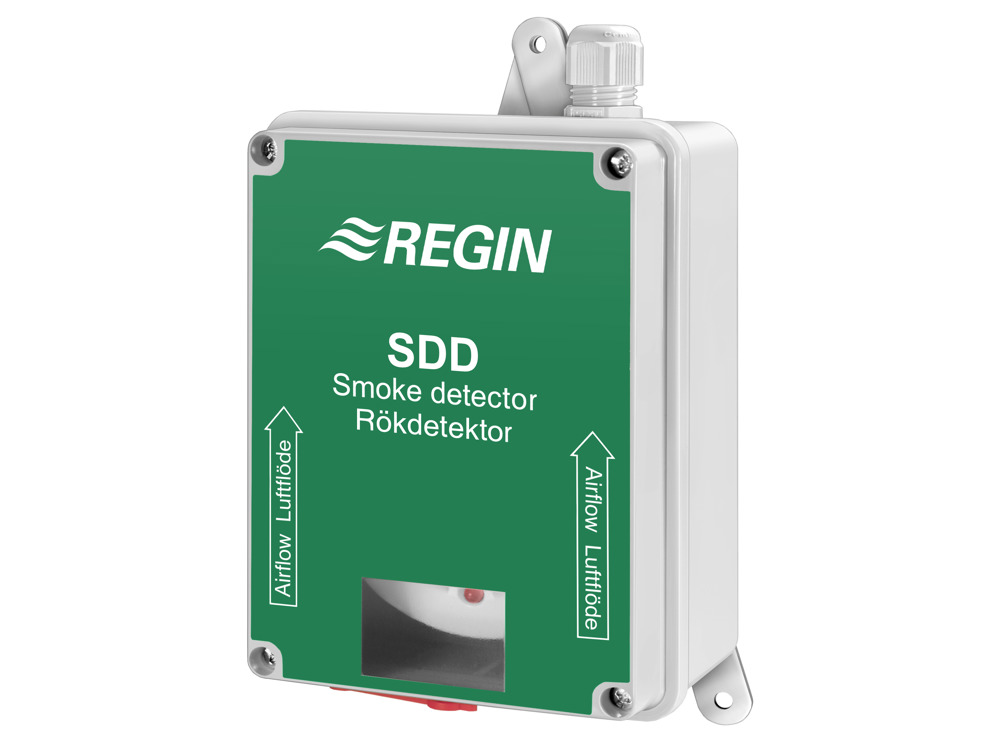

SDD-OE65 Smoke detector for duct mounting, optical
Optical detector with service alarm (max 20 sensors, to be connected to CABV control unit) including 600 mm Venturi tube.
Navigate on this page
Specifications
| Power Supply | 9...33 V DC (via ABV control unit) |
|---|---|
| Wind speed | Up to 20 m/s |
| Smoke alarm | Red LED |
| Service alarm | Red LED on detector. Yellow LED on control unit. |
| Current consumption, normal | 10 mA |
| Current consumption during alarm | 50 mA |
| Current consumption during service alarm | 20 mA |
| End resistor | An end resistor (2,2 kΩ) should be connected to the last detector to end the loop. |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 5…95 % RH |
| Mounting | Duct |
