Regin

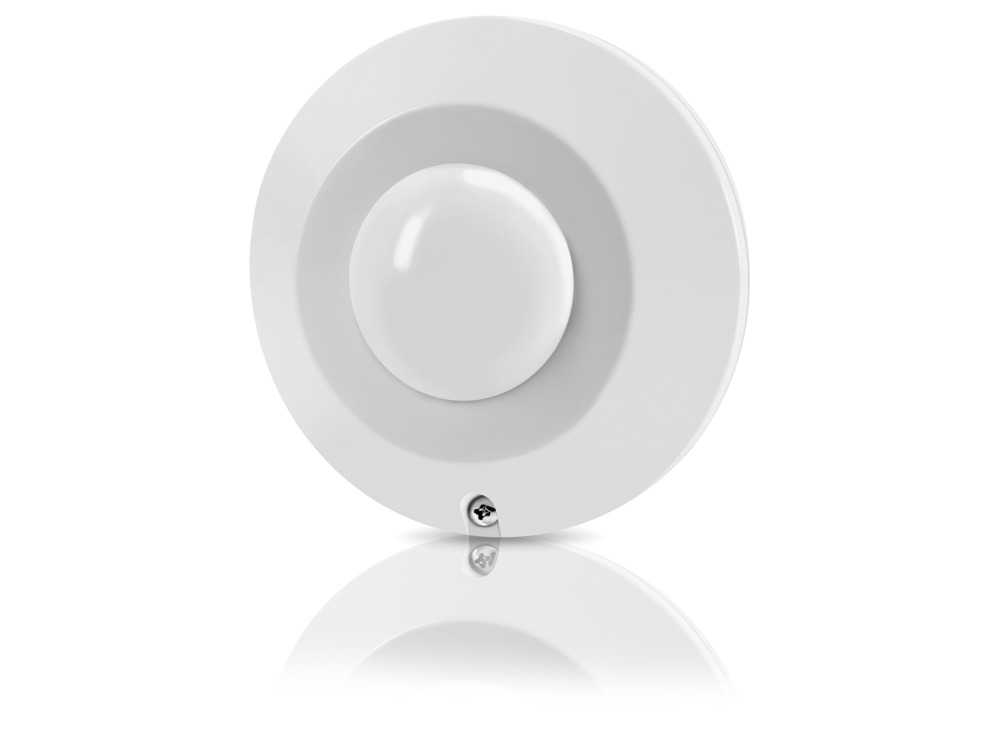

IR24-PC Motion detectors
Motion detector
Navigate on this page
Specifications
| Power Supply | 24VAC/DC (22...26 V AC 50Hz / 22...26 V DC), 1.0 VA |
|---|---|
| Dimensions, external (WxHxD) | x110x44 mm |
| Relay | NC / NO potential-free change-over relay |
| Max. switching load | 200 mA |
| ON-Delay | 0, 10, 30, 60, 300 or 600 s (selectable) |
| OFF-Delay | 10, 60, 300, 600, 1200 or 1800 s (selectable) |
| Detection area - Angle | 360 ° |
| Detection range Hight | 6m @ 2.4m, 10.5m @ 4.2m |
| Detection speed | 0.1...3.0 ms |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Mounting | Room |
