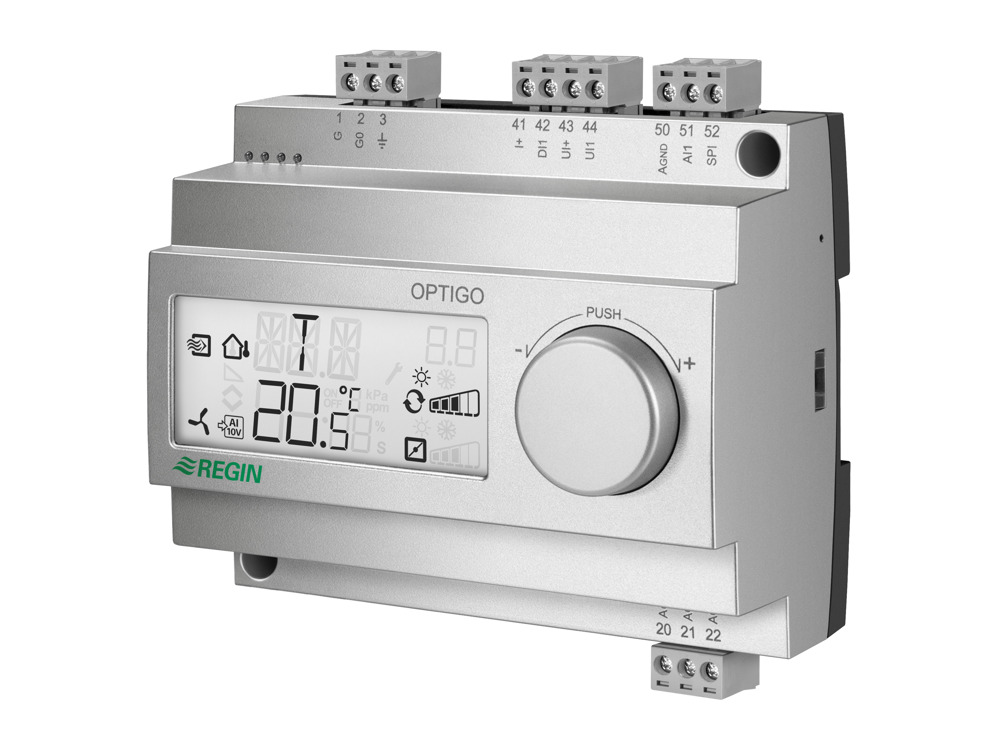

OP5U Optigo - Controllers for simple applications
Controller for control of temperature, CO2 and pressure.
Navigate on this page
Specifications
| Power Supply | 24VAC (21...27 V AC 50/60Hz), 4.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 123x123x60 mm |
| Number of modules | 7 |
| Display | Yes |
| Display type | Backlit LCD, numeric/graphic, language-independent symbols |
| AI | 1 |
| UI | 1 |
| DI | 1 |
| AO | 2 |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -40…50 °C |
| Mounting | DIN-rail |
| Analogue inputs type (AI) | PT1000 |
| Digital inputs type (DI) | Closing potential-free contact |
| Digital outputs type (DO) | Triac 24 V AC, 0.5 A (3-point control or alarm output) and one change-over relay 230 V AC, 5 A (fan start). |
| Universal inputs type (UI) | 0...10 V DC or digital |
| Analogue outputs type (AO) | 0...10 V DC, short-circuit protected |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 3 mm² |
