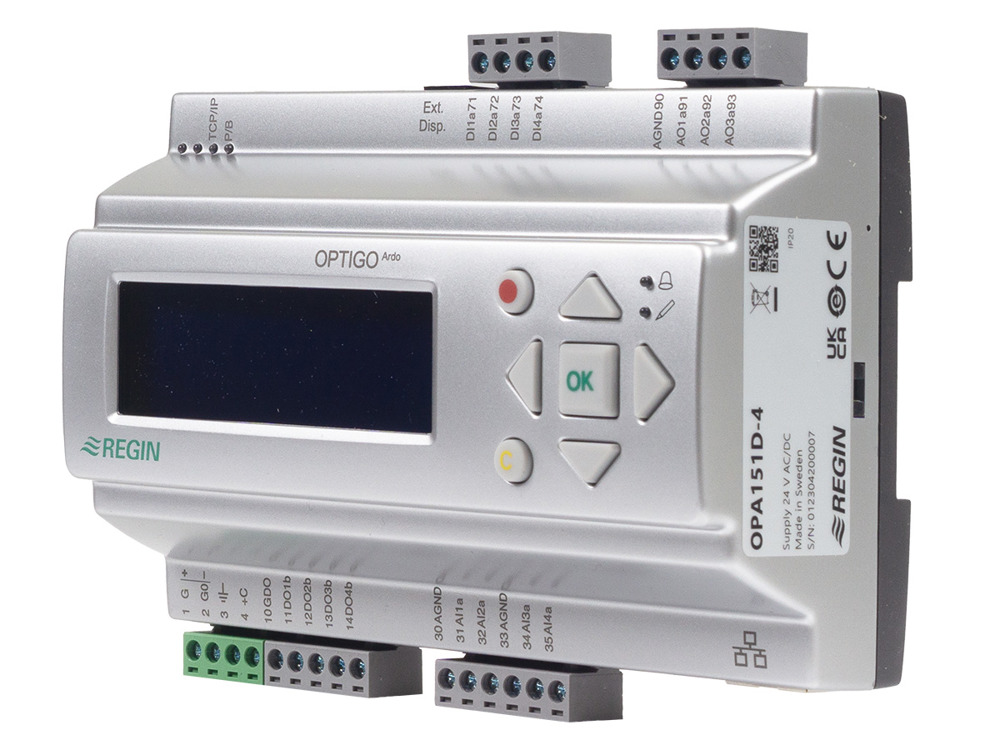

OPA151D-4 Optigo Ardo - simple stand-alone ventilation controller
Simple and versatile stand-alone ventilation controller without communication to control a complete air handling unit. Fast and easy to install, commission and control with predefined applications for ventilation.
Navigate on this page
Specifications
Controller Type | Stand-Alone |
---|---|
Power Supply | 24V AC, 24V DC |
Mounting | DIN-rail |
Display | Yes |
Supported protocols | - |
Port type | Ethernet, Display |
Power Supply | 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA |
Ambient temperature | 0…50 °C °C |
Dimensions, external (WxHxD) | 149x121x60 mm |
Display | Yes |
Display type | Backlit (LCD), 4 rows of 20 characters |
Ethernet ports | 1 |
Display ports | 1 |
AI | 4 |
UI | 0 |
DI | 4 |
CI | 0 |
AO | 3 |
UO | 0 |
DO | 4 |
Battery type | CR2032 replacable Lithium cell |
---|---|
Battery life time | 5 years |
Protection class | IP20 |
Storage temperature | -20…70 °C °C |
Mounting | DIN-rail |
Analogue inputs type (AI) | PT1000/Ni1000/Ni1000LG/0-10 V |
Terminal type | Screw Terminal |
Detachable terminal | Yes |
Terminal wire size | 3 mm² |
Material, housing | Polycarbonate (PC) |
Material, base | Polycarbonate (PC) |
