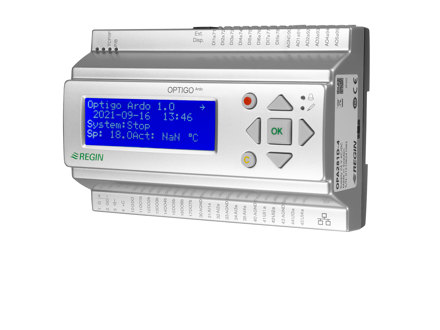

OPA151D-4- Power Supply
- 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
- Dimensions, external (WxHxD)
- 149x121x60 mm
- Display
- Yes
- Display type
- Backlit (LCD), 4 rows of 20 characters
- Ethernet ports
- 1
- Display ports
- 1
- AI
- 4
- UI
- 0
- DI
- 4
- CI
- 0
- AO
- 3
- UO
- 0
- DO
- 4
- Number of I/O
- 4+3
-
OPA281D-4
- Power Supply
- 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
- Dimensions, external (WxHxD)
- 149x121x60 mm
- Display
- Yes
- Display type
- Backlit (LCD), 4 rows of 20 characters
- Ethernet ports
- 1
- Display ports
- 1
- AI
- 4
- UI
- 4
- DI
- 8
- CI
- 0
- AO
- 5
- UO
- 0
- DO
- 7
- Number of I/O
- 4+5
Specifications
| Battery type | CR2032 replacable Lithium cell |
|---|---|
| Battery life time | 5 years |
| Protection class | IP20 |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Analogue inputs type (AI) | PT1000/Ni1000/Ni1000LG/0-10 V |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 3 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
