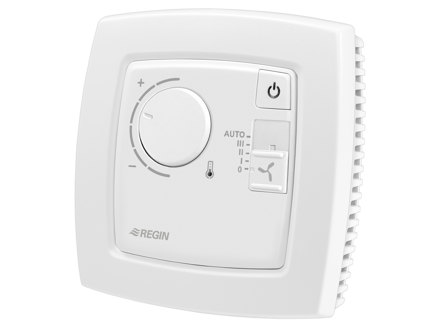

RC-FO Regio Mini – Pre-programmed room controllers without communication
Stand-alone controllers for control of heating and cooling in a single zone or room
The Regio Mini controllers can be configured for a specific application via the display or dipswitches (in most cases, though, the default settings can be applied). The controllers have a built-in temperature sensor. Alternatively, an external temperature sensor can be connected.
RC is the basic model in the range. The other models have various functions, indicated by the letters in the product name:
D = Display, F = Fan control (3-speed), H = Hidden setpoint, O = Occupancy button, T = 3-point output
Navigate on this page
Specifications
| Power Supply | 24VAC (18...30 V AC 50/60Hz / ), 2.5 VA |
|---|---|
| Dimensions, external (WxHxD) | 95x95x31 mm |
| AI | 1 |
| UI | 1 |
| DI | 1 |
| DI/CI | 1 |
| UO | 2 |
| DO | 4 |
| Colour, cover | RAL9003 |
| Occupancy button | Yes |
| 3-step fan control | Yes |
| Setpoint knob | Yes |
| Hidden setpoint | No |
| Display | No |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -20…70 °C |
| Mounting | Room |
| Weight, incl. packaging | 0.11 kg |
| Analogue inputs type (AI) | PT1000, 0...50°C, 0...10 V |
| Universal inputs type (UI) | PT1000 / DI |
| Condensation inputs type (CI) | Digital input for condensation detector KG-A/1 |
| Universal outputs type (UO) | DO 24 V AC/1A, AO 0...10 V/5mA |
| Accuracy, temperature 1 | ±0.5 °K @ 15...30 °C |
| Material, housing | Polycarbonate, PC |
Software & documentation
Product sheet
Instructions
Other documentation
Accessories
Relay unit for RC-...F... controllers
Power interface for RC-...F... controllers
Condensation detector for Regio controllers, 1 m cable length
A set of 10 connector plates for RC units
A set of 10 connector plates for RCC units
Service adapter for all Regio room units
