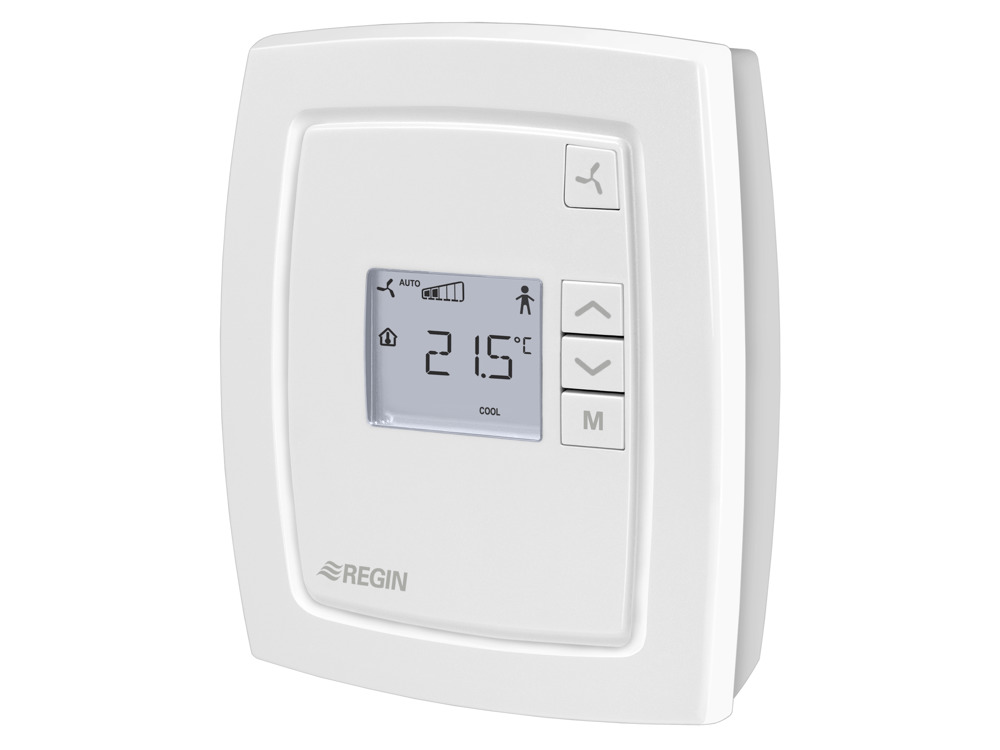

Regio RCF - Fan-coil thermostat with on/off outputs

Electronic fan-coil thermostats for room temperature control. Automatic or manual change-over between heating and cooling. The thermostats have a function for 3-speed fan control (for fan-coil), a built-in temperature sensor, backlit display, and an input for a window contact or an occupancy detector.

Specifications
Software & documentation

Articles

(2 st)
  • RCF-230D - Regin
    RCF-230D
    Fan-coil thermostat
    Power Supply
    230VAC (207...253 V AC 50/60Hz / ), 3.0 VA
    Dimensions, external (WxHxD)
    102x120x29 mm
    AI
    1
    UI
    1
    DI
    1
    DO
    5
    Number of I/O
    1+
    Colour, cover
    RAL9003
    Change-over Automatic
    Yes
    Outputs On/Off Valves
    Yes
    Outputs Thermal/3 point
    No
    Outputs 0...10V
    No
  • RCF-230CD - Regin
    RCF-230CD
    Fan-coil thermostat with communication via RS485 (Modbus, BACnet or EXOline)
    Power Supply
    230VAC (207...253 V AC 50/60Hz / ), 3.0 VA
    Dimensions, external (WxHxD)
    102x120x29 mm
    Supported protocols
    EXOline, Modbus, BACnet
    AI
    1
    UI
    1
    DI
    1
    DO
    5
    Number of I/O
    1+
    Colour, cover
    RAL9003
    Change-over Automatic
    Yes
    Outputs On/Off Valves
    Yes
    Outputs Thermal/3 point
    No
    Outputs 0...10V
    No

Specifications

Specifications for Regio RCF - Fan-coil thermostat with on/off outputs
Protection class IP20
Ambient humidity (non-condensing) 0…90 % RH
Storage temperature -20…70 °C
Mounting Room
Weight, incl. packaging 0.18 kg
Analogue inputs type (AI) PT1000
Digital inputs type (DI) Potential-free contact
Digital outputs type (DO) 3 Relay 230VAC/3A, 2 Triac 23VAC 300mA
Universal inputs type (UI) PT1000 / DI
Accuracy, temperature 1 ±0.5 °K @ 15...30 °C
Material, housing Polycarbonate, PC
