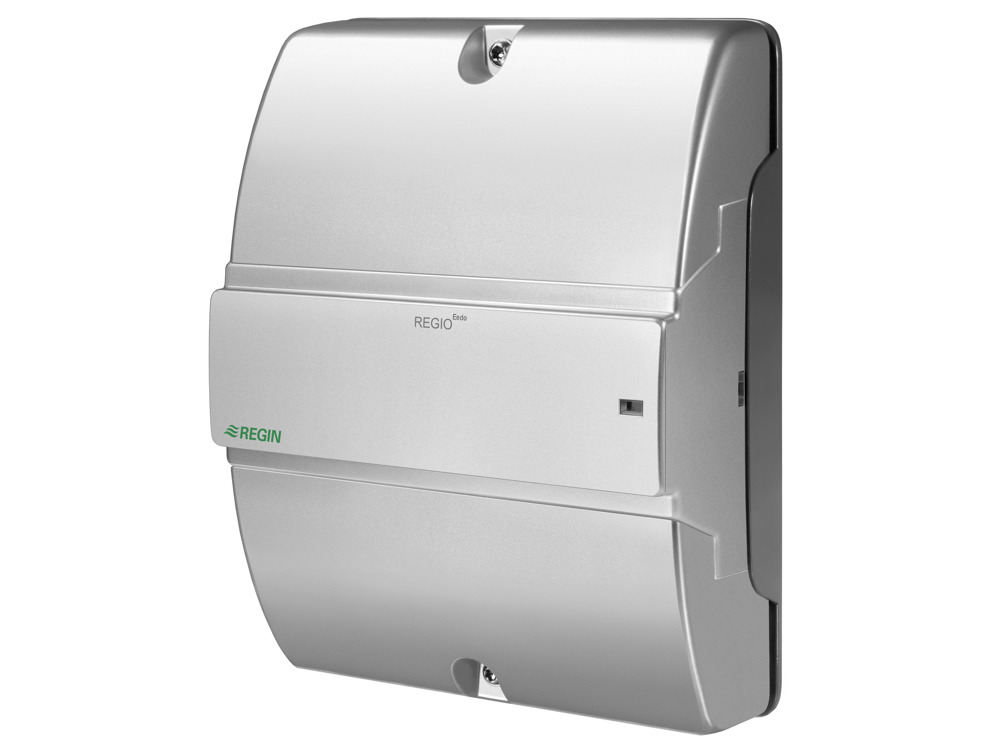

RC-E163W-1-TP Regio Eedo
Regio Eedo is a configurable 230 V zone controller for e.g. fan coils.
It is prepared for quick connection of the ED-RU room units. The controller is compatible with other Regin products and can easily be integrated into larger systems.
The controller can be used in systems with communication, e.g. EXOline, Modbus or BACnet (over RS485 or TCP/IP). It is installed in a ceiling void, on a junction box plate or on a DIN-rail.
Navigate on this page
Specifications
| Power Supply | 230VAC (207...253 V AC 50/60Hz / ), 11.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 153x202x68 mm |
| AI | 3 |
| DI | 3 |
| CI | 1 |
| AO | 4 |
| DO | 5 |
| Number of I/O | 3+4 |
| Battery type | CR2032 |
|---|---|
| Battery life time | 5 years |
| Protection class | IP30 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Mounting | DIN-rail, Wall, Ceiling |
| Analogue inputs type (AI) | PT1000 or 0...10 V DC |
| Digital inputs type (DI) | Potential-free contact |
| Digital outputs type (DO) | Triac outputs: 230 V AC, 300 mA / Relay outputs: 230 V AC, 3 A |
| Condensation inputs type (CI) | Input for Regin's condensation detector KG-A/1 |
| Analogue outputs type (AO) | 0...10 V DC |
Software & documentation
Product sheet
Instructions
Manuals
Other documentation
Accessories
ED-RUD-2
Room unit with backlit touch display, intended for use with advanced controllers. NOTE! A backplate for either…
EDSP-K3
3 m cable for connecting an external display
E-CABLE2-USB
Cable for USB connection
KG-A/1
Condensation detector for Regio controllers, 1 m cable length
