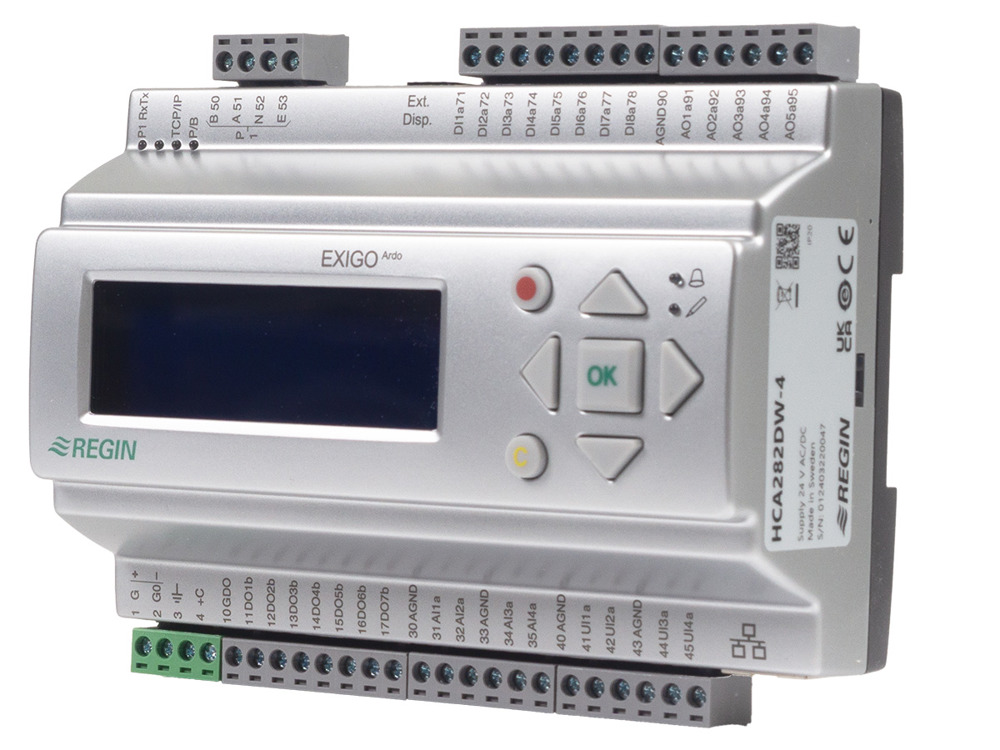

HCA282DW-4 Exigo Ardo - Configurable 24 V heating controller
Exigo Ardo are controllers for heating and boiler control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail or in a cabinet door.
Navigate on this page
Specifications
| Power Supply | 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 149x121x60 mm |
| Display | Yes |
| Display type | Backlit (LCD), 4 rows of 20 characters |
| Supported protocols | EXOline, Modbus, BACnet |
| RS485 ports | 1 |
| Ethernet ports | 1 |
| AI | 4 |
| UI | 4 |
| DI | 8 |
| AO | 5 |
| DO | 7 |
| Number of I/O | 4+5 |
| Battery type | CR2032 replacable Lithium cell |
|---|---|
| Battery life time | 5 years |
| Protection class | IP20 |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Analogue inputs type (AI) | PT1000/Ni1000/Ni1000LG/0-10 V |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 3 mm² |
| Material, housing | Polycarbonate (PC) |
| Material, base | Polycarbonate (PC) |
Software & documentation
Product sheet
Instructions
Manuals
Accessories
E3-DSP
External display
ED-T7
External touch screen display
IO-A15MIXW-3-BEM
Ardo expansion unit with15 I/O:s
IO-A28MIXW-3-BEM
Ardo expansion unit with 28 I/O:s
IO-V19MIXW-1-BEM
Vido expansion unit with 19 I/O:s
EDSP-K3
3 m cable for connecting an external display
EDSP-K10
10 m cable for connecting an external display
