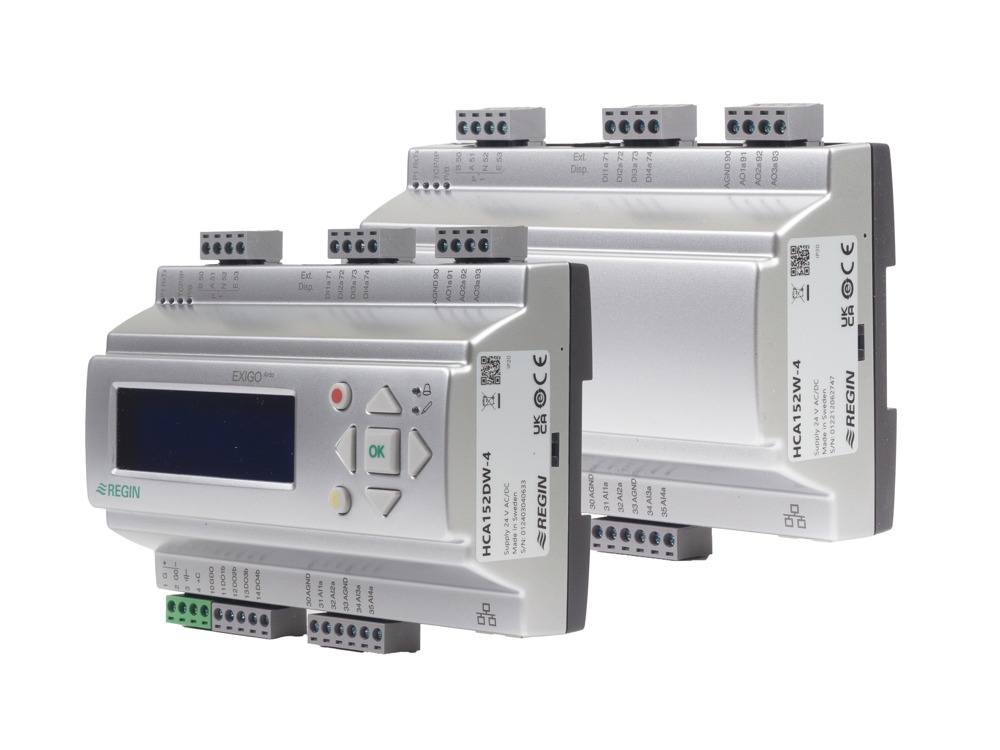

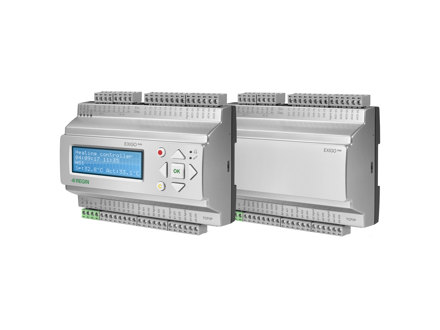

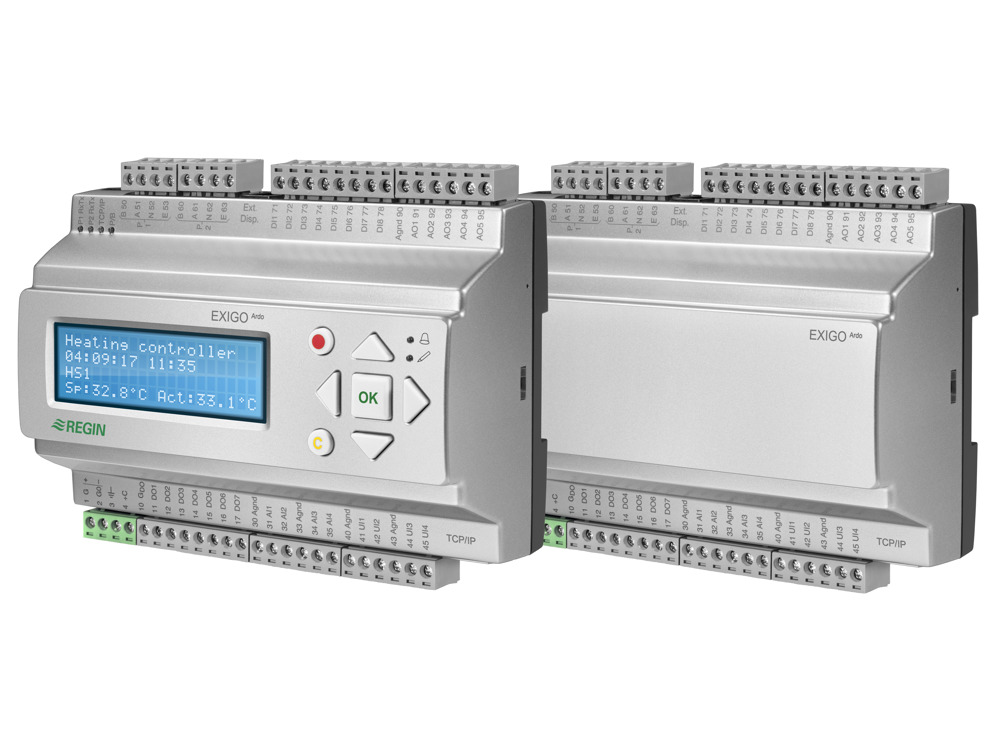

Exigo Ardo - Configurable 24 V heating controller

Exigo Ardo are controllers for heating and boiler control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail or in a cabinet door.

Specifications
Software & documentation
Accessories

Articles

(5 st)
  • HCA152W-4 - Regin
    HCA152W-4
    Controller Type
    Heating
    Power Supply
    24V AC, 24V DC
    Mounting
    DIN-rail
    Display
    No
    Supported protocols
    EXOline, Modbus, BACnet
    Port type
    Ethernet, RS-485, Display
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
    Ambient temperature
    0…50 °C °C
    Dimensions, external (WxHxD)
    149x121x60 mm
    Display
    No
    Supported protocols
    EXOline, Modbus, BACnet
    RS485 ports
    1
    Ethernet ports
    1
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    0
    AO
    3
    UO
    0
    DO
    4
  • HCA152DW-4 - Regin
    HCA152DW-4
    Controller Type
    Heating
    Power Supply
    24V AC, 24V DC
    Mounting
    DIN-rail
    Display
    Yes
    Supported protocols
    EXOline, Modbus, BACnet
    Port type
    Ethernet, RS-485, Display
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
    Ambient temperature
    0…50 °C °C
    Dimensions, external (WxHxD)
    149x121x60 mm
    Display
    Yes
    Display type
    Backlit (LCD), 4 rows of 20 characters
    Supported protocols
    EXOline, Modbus, BACnet
    RS485 ports
    1
    Ethernet ports
    1
    Display ports
    1
    AI
    4
    UI
    0
    DI
    4
    CI
    0
    AO
    3
    UO
    0
    DO
    4
  • HCA282DW-4 - Regin
    HCA282DW-4
    Controller Type
    Heating
    Power Supply
    24V AC, 24V DC
    Mounting
    DIN-rail
    Display
    Yes
    Supported protocols
    EXOline, Modbus, BACnet
    Port type
    Ethernet, RS-485, Display
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
    Ambient temperature
    0…50 °C
    Dimensions, external (WxHxD)
    149x121x60 mm
    Display
    Yes
    Display type
    Backlit (LCD), 4 rows of 20 characters
    Supported protocols
    EXOline, Modbus, BACnet
    RS485 ports
    1
    Ethernet ports
    1
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    UO
    0
    DO
    7
  • HCA283WM-4 - Regin
    HCA283WM-4
    Controller Type
    Heating
    Power Supply
    24V AC, 24V DC
    Mounting
    DIN-rail
    Display
    No
    Supported protocols
    EXOline, Modbus, BACnet, M-Bus
    Port type
    Ethernet, RS-485, M-Bus, Display
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
    Ambient temperature
    0…50 °C
    Dimensions, external (WxHxD)
    149x121x60 mm
    Display
    No
    Supported protocols
    EXOline, Modbus, BACnet
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    1
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    UO
    0
    DO
    7
  • HCA283DWM-4 - Regin
    HCA283DWM-4
    Controller Type
    Heating
    Power Supply
    24V AC, 24V DC
    Mounting
    DIN-rail
    Display
    Yes
    Supported protocols
    EXOline, Modbus, BACnet, M-Bus
    Port type
    Ethernet, RS-485, M-Bus, Display
    Power Supply
    24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
    Ambient temperature
    0…50 °C
    Dimensions, external (WxHxD)
    149x121x60 mm
    Display
    Yes
    Display type
    Backlit (LCD), 4 rows of 20 characters
    Supported protocols
    EXOline, Modbus, BACnet
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    1
    Display ports
    1
    AI
    4
    UI
    4
    DI
    8
    CI
    0
    AO
    5
    UO
    0
    DO
    7

Specifications

Specifications for Exigo Ardo - Configurable 24 V heating controller
Battery type CR2032 replacable Lithium cell
Battery life time 5 years
Protection class IP20
Storage temperature -20…70 °C °C
Mounting DIN-rail
Analogue inputs type (AI) PT1000/Ni1000/Ni1000LG/0-10 V
Terminal type Screw Terminal
Detachable terminal Yes
Terminal wire size 3 mm²
Material, housing Polycarbonate (PC)
Material, base Polycarbonate (PC)

Software & documentation

Product sheet

Instructions

Manuals

Other documentation

Accessories

E3-DSP

External display

ED-T7

External touch screen display

IO-A15MIXW-3-BEM

Ardo expansion unit with15 I/O:s

IO-A28MIXW-3-BEM

Ardo expansion unit with 28 I/O:s

IO-V19MIXW-1-BEM

Vido expansion unit with 19 I/O:s

EDSP-K3

3 m cable for connecting an external display

EDSP-K10

10 m cable for connecting an external display
