Regin

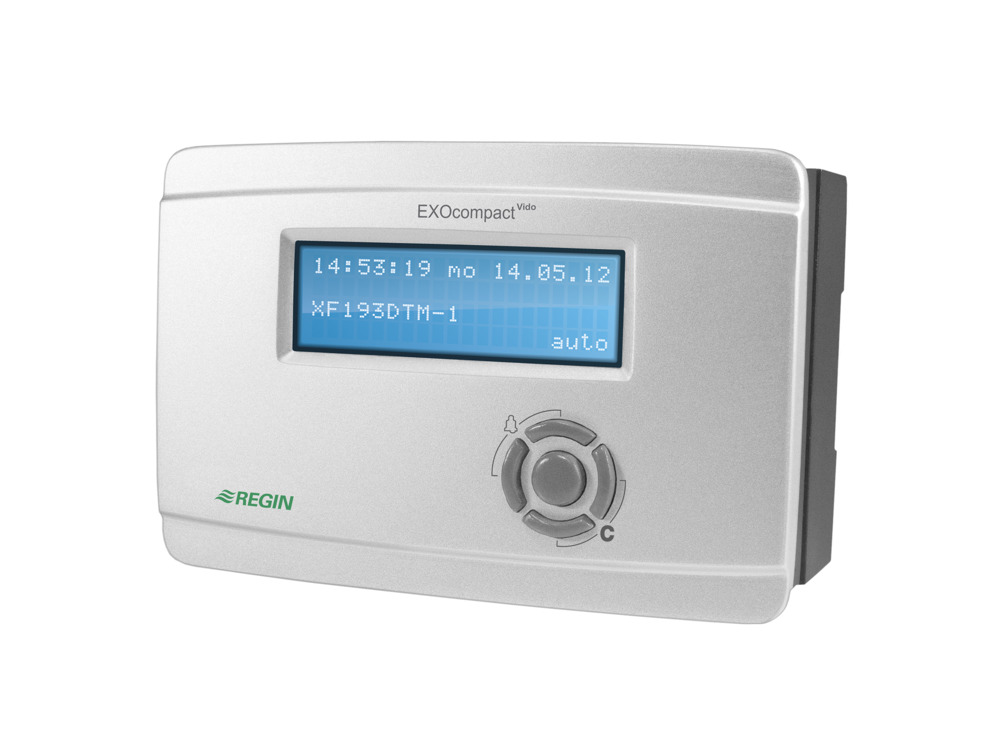

XCV193DWM-2 EXOcompact Vido freely programmable controllers
EXOcompact Vido is a 230 V AC freely programmable controller especially suitable for heating applications. It provides built-in communication via EXOline, Modbus or BACnet for integration into larger systems. It can be used either as a stand-alone unit or as part of a larger system.
Navigate on this page
Specifications
| Controller Type | Freely Programmable |
|---|---|
| Power Supply | 230 V AC |
| Mounting | DIN-rail, Wall mount, Cabinet Door |
| Display | Yes |
| Supported protocols | EXOline, Modbus, BACnet, M-Bus, EFX |
| Port type | Ethernet, RS-485, M-Bus, Display |
| Power Supply | 230VAC (217...253 V AC 50Hz / ), 10.0 VA |
| Ambient temperature | 0…50 °C °C |
| Dimensions, external (WxHxD) | 147x98x76 mm |
| Display type | 4*20 CHAR |
| RS485 ports | 1 |
| Ethernet ports | 1 |
| M-Bus ports | 1 |
| AI | 8 |
| DI | 2 |
| UA | 2 |
| DO | 7 |
| Battery life time | 5 years |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C °C |
| Storage humidity | 0...95 % RH |
| Weight, incl. packaging | 0.37 kg |
| Material, housing | POLYCARBONATE, PC |
Software & documentation
Product sheet
Other documentation
Accessories
PLTCE
Set of angled plug-in terminal blocks
E-CABLE2-USB
Cable for USB connection
ED-T7
External touch screen display
E3-DSP
External display
EDSP-K3
3 m cable for connecting an external display
EDSP-K10
10 m cable for connecting an external display
EDSP-SPLIT
Cable splitter for connecting two display units to one controller
