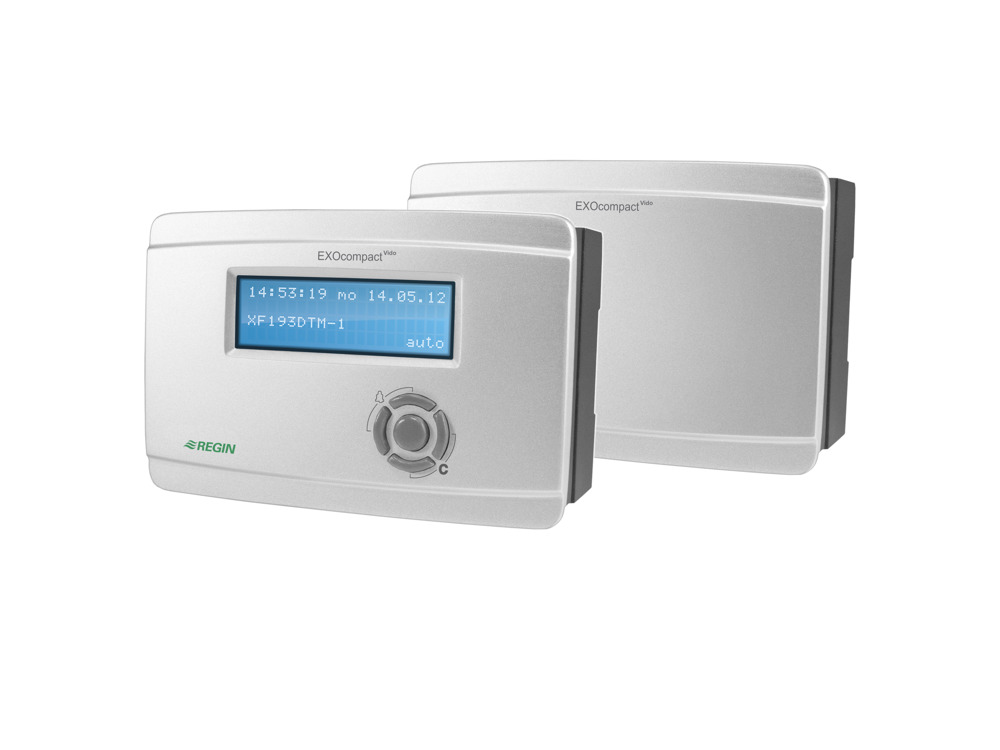

EXOcompact Vido freely programmable controllers

EXOcompact Vido is a 230 V AC freely programmable controller especially suitable for heating applications. It provides built-in communication via EXOline, Modbus or BACnet for integration into larger systems. It can be used either as a stand-alone unit or as part of a larger system.

Specifications
Software & documentation
Accessories

Articles

(2 st)
  • XCV193DWM-2 - Regin
    XCV193DWM-2
    Controller Type
    Freely Programmable
    Power Supply
    230 V AC
    Mounting
    DIN-rail, Wall mount, Cabinet Door
    Display
    Yes
    Supported protocols
    EXOline, Modbus, BACnet, M-Bus, EFX
    Port type
    Ethernet, RS-485, M-Bus, Display
    Power Supply
    230VAC (217...253 V AC 50Hz / ), 10.0 VA
    Ambient temperature
    0…50 °C °C
    Dimensions, external (WxHxD)
    147x98x76 mm
    Display type
    4*20 CHAR
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    1
    AI
    8
    DI
    2
    UA
    2
    DO
    7
  • XCV193WM-2 - Regin
    XCV193WM-2
    Controller Type
    Freely Programmable
    Power Supply
    230 V AC
    Mounting
    DIN-rail, Wall mount, Cabinet Door
    Display
    No
    Supported protocols
    EXOline, Modbus, BACnet, M-Bus, EFX
    Port type
    Ethernet, RS-485, M-Bus, Display
    Power Supply
    230VAC (217...253 V AC 50Hz / ), 10.0 VA
    Ambient temperature
    0…50 °C °C
    Dimensions, external (WxHxD)
    147x98x76 mm
    Display type
    -
    RS485 ports
    1
    Ethernet ports
    1
    M-Bus ports
    1
    AI
    8
    DI
    2
    UA
    2
    DO
    7

Specifications

Specifications for EXOcompact Vido freely programmable controllers
Battery life time 5 years
Protection class IP20
Ambient humidity (non-condensing) 0…95 % RH
Storage temperature -20…70 °C °C
Storage humidity 0...95 % RH
Weight, incl. packaging 0.37 kg
Material, housing POLYCARBONATE, PC

Software & documentation

Product sheet

Other documentation

Accessories

PLTCE

Set of angled plug-in terminal blocks

E-CABLE2-USB

Cable for USB connection

ED-T7

External touch screen display

E3-DSP

External display

EDSP-K3

3 m cable for connecting an external display

EDSP-K10

10 m cable for connecting an external display

EDSP-SPLIT

Cable splitter for connecting two display units to one controller
