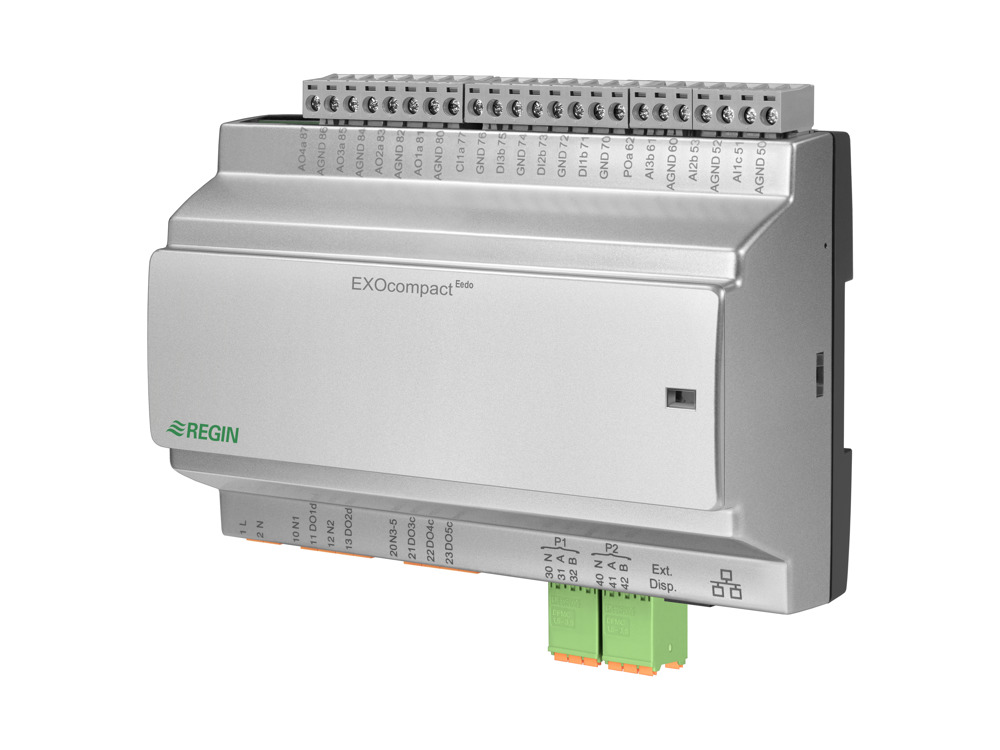

XCE163W-1 EXOcompact Eedo freely programmable controllers
EXOcompact Eedo is a 230 V AC freely programmable controller. The controller provides built-in communication via EXOline, Modbus or BACnet for integration into Arrigo BMS or other SCADA systems. It can be used either as a stand-alone unit or as part of a larger system. The controller is well suited to act as a room controller and connects seamlessly to the room units in Regin’s ED-RU-… series.
Navigate on this page
Specifications
| Controller Type | Freely Programmable |
|---|---|
| Power Supply | 230 V AC |
| Mounting | DIN-rail, Wall mount |
| Display | No |
| Supported protocols | EXOline, Modbus, BACnet, EFX |
| Port type | Ethernet, RS-485, Display |
| Power Supply | 230VAC (207...253 V AC 50/60Hz / ), 11.0 VA |
| Ambient temperature | 0…50 °C °C |
| Dimensions, external (WxHxD) | 149x121x58 mm |
| Display type | - |
| RS485 ports | 2 |
| Ethernet ports | 1 |
| AI | 3 |
| DI | 3 |
| CI | 1 |
| AO | 4 |
| DO | 5 |
| Battery life time | 5 years |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C °C |
| Casing | Euro DIN Norm |
| Weight, incl. packaging | 0.37 kg |
Software & documentation
Product sheet
Other documentation
Accessories
Front mounting kit, 12 modules
Cable for USB connection
Terminal protection kit for Ardo and Eedo controllers
External touch screen display
External display
3 m cable for connecting an external display
10 m cable for connecting an external display
Cable splitter for connecting two display units to one controller
Front mounting kit, room for one controller
Set of angled plug-in terminal blocks
