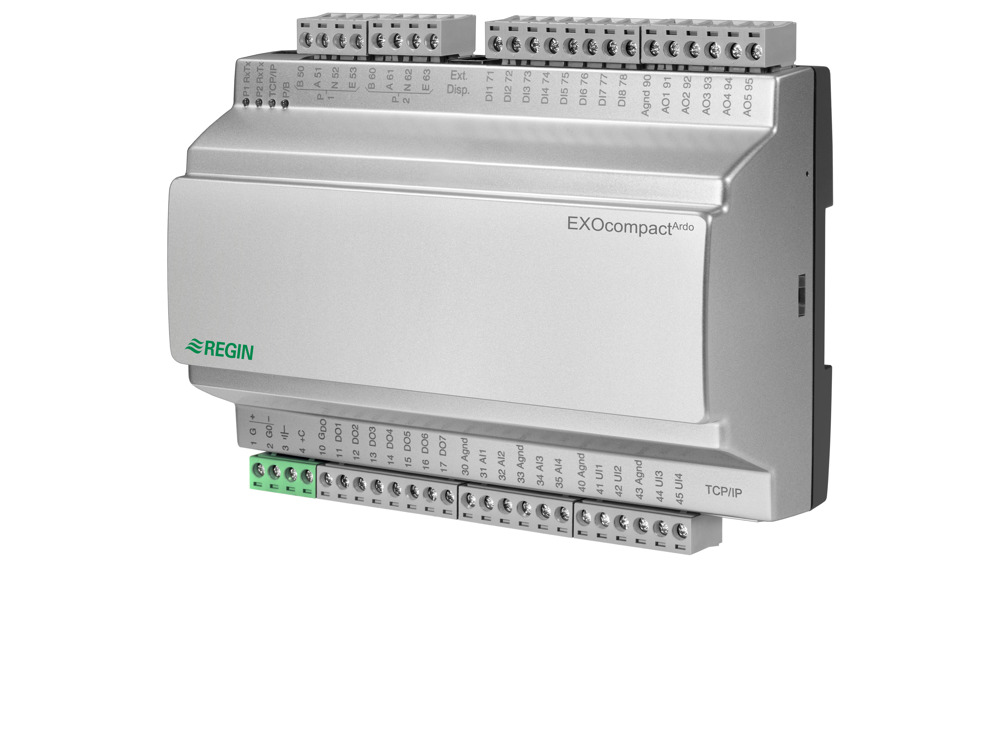

XCA283W-4 EXOcompact Ardo freely programmable controllers
Small and compact controller with different types of communication, with or without built-in display. EXOcompact Ardo is equipped with various communication ports. Therefore it can either act as a stand-alone unit or be integrated with Arrigo BMS or other SCADA systems.
User-friendly tools are available for flexible handling and easy access via the web server.
Navigate on this page
Specifications
| Power Supply | 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA |
|---|---|
| Dimensions, external (WxHxD) | 149x121x58 mm |
| Display type | - |
| Supported protocols | EXOline, Modbus, BACnet, EFX |
| RS485 ports | 2 |
| Ethernet ports | 1 |
| M-Bus ports | 0 |
| Display ports | 1 |
| AI | 4 |
| UI | 4 |
| DI | 8 |
| CI | 0 |
| AO | 5 |
| DO | 7 |
| Number of I/O | 28 |
| Battery life time | 5 years |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Casing | Euro Norm |
| Weight, incl. packaging | 0.4 kg |
| Terminal block width | 5 mm |
| Terminal type | Screw Terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
| Material, housing | Polycarbonate |
