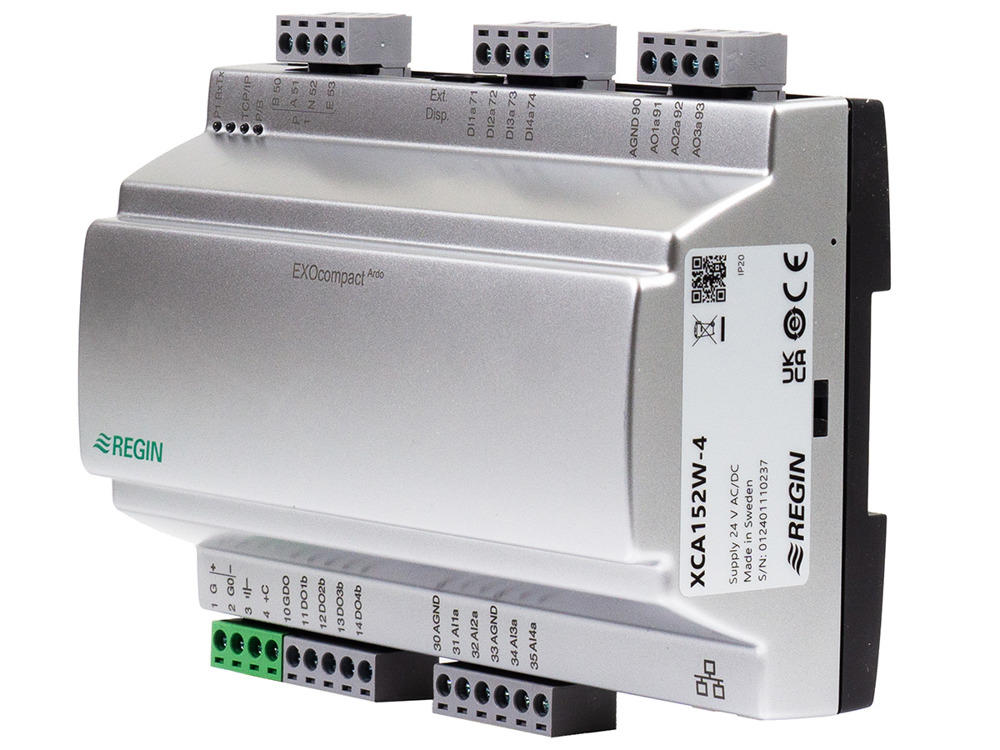

XCA152W-4 EXOcompact Ardo freely programmable controllers
Small and compact controller with different types of communication, with or without built-in display. EXOcompact Ardo is equipped with various communication ports. Therefore it can either act as a stand-alone unit or be integrated with Arrigo BMS or other SCADA systems. User-friendly tools are available for flexible handling and easy access via the web server.
Navigate on this page
Specifications
Controller Type | Freely Programmable |
---|---|
Power Supply | 24V AC, 24V DC |
Mounting | DIN-rail |
Display | No |
Supported protocols | EXOline, Modbus, BACnet, EFX |
Port type | RS-485, Display |
Power Supply | 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 4.0 VA |
Ambient temperature | 0…50 °C °C |
Dimensions, external (WxHxD) | 149x121x58 mm |
Display type | - |
Supported protocols | EXOline, Modbus, BACnet, EFX |
RS485 ports | 1 |
Ethernet ports | 1 |
M-Bus ports | 0 |
Display ports | 1 |
AI | 4 |
UI | 0 |
DI | 4 |
CI | 0 |
AO | 3 |
DO | 4 |
Battery life time | 5 years |
---|---|
Protection class | IP20 |
Ambient humidity (non-condensing) | 0…95 % RH |
Storage temperature | -20…70 °C °C |
Mounting | DIN-rail |
Casing | Euro Norm |
Weight, incl. packaging | 0.4 kg |
Terminal block width | 5 mm |
Terminal type | Screw Terminal |
Detachable terminal | Yes |
Terminal wire size | 1.5 mm² |
Material, housing | Polycarbonate |
Software & documentation
Product sheet
Other documentation
Accessories
Front mounting kit, room for one controller
Set of angled plug-in terminal blocks
Cable for USB connection
Front mounting kit, 12 modules
Terminal protection kit for Ardo and Eedo controllers
External touch screen display
Cable splitter for connecting two display units to one controller
External display
3 m cable for connecting an external display
10 m cable for connecting an external display
External touch display for controllers with web interface
External display
