Regin

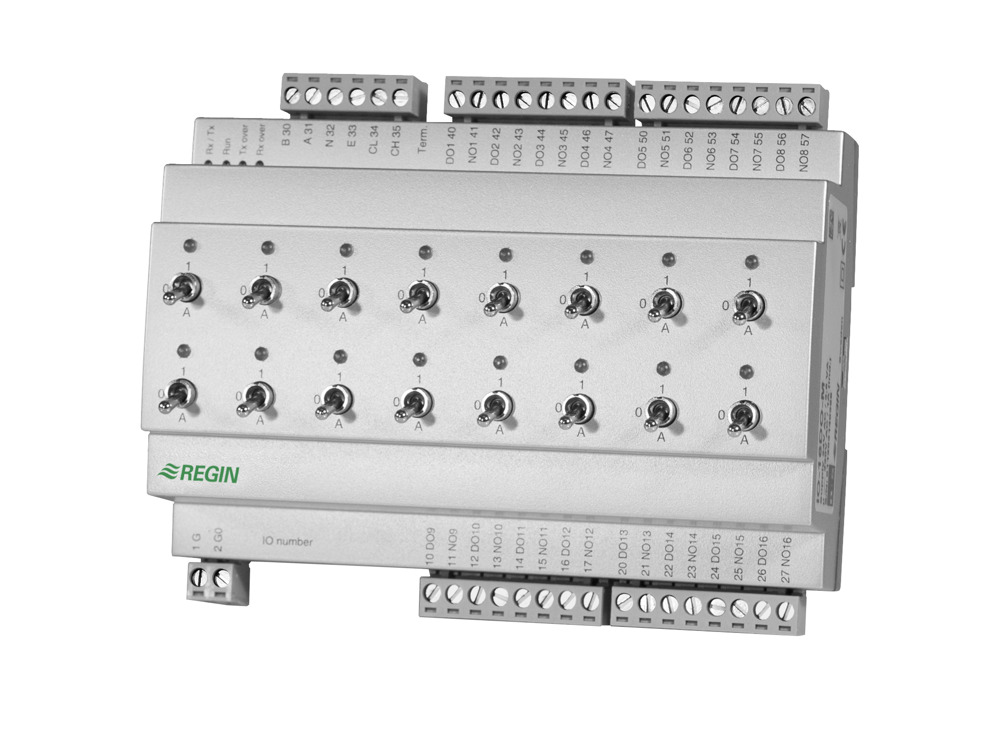

IO-16DO-M I/O module with 16 digital outputs
Output module
Navigate on this page
Specifications
| Controller Type | I/O-Module |
|---|---|
| Power Supply | 230 V AC |
| Mounting | DIN-rail |
| Display | No |
| Supported protocols | EXOline |
| Port type | RS-485 |
| Power Supply | 24VAC (20...28 V AC 50Hz / ), 3.5 VA |
| Ambient temperature | 0…50 °C °C |
| Dimensions, external (WxHxD) | 148x123x74 mm |
| Supported protocols | EXOline |
| RS485 ports | 1 |
| DO | 16 |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Material, housing | Polycarbonate (PC) |
