Regin

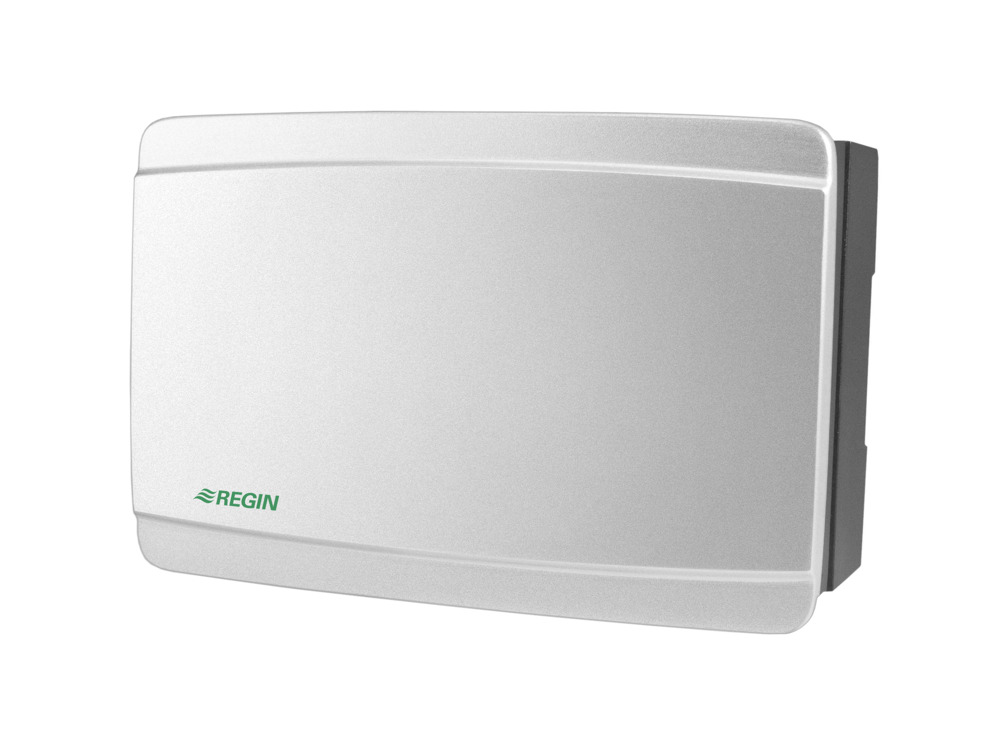

IO-V19MIXW-1-BEM Expansion units
Vido expansion unit with 19 I/O:s
Navigate on this page
Specifications
| Controller Type | I/O-Module |
|---|---|
| Power Supply | 230 V AC |
| Mounting | DIN-rail, Wall mount, Cabinet Door |
| Display | No |
| Supported protocols | EXOline, Modbus, BACnet |
| Port type | Ethernet, RS-485 |
| Power Supply | 230VAC (217...253V AC 50Hz) / 10 VA |
| Ambient temperature | 0…55 °C °C |
| Dimensions, external (WxHxD) | 147x98x76 mm |
| RS485 ports | 1 |
| Ethernet ports | 1 |
| AI | 4 |
| UI | 4 |
| DI | 2 |
| AO | 0 |
| UA | 2 |
| DO | 7 |
| Battery life time | 5 years |
|---|---|
| Protection class | IP20 |
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C °C |
| Mounting | DIN-rail |
| Weight, incl. packaging | 0.4 kg |
