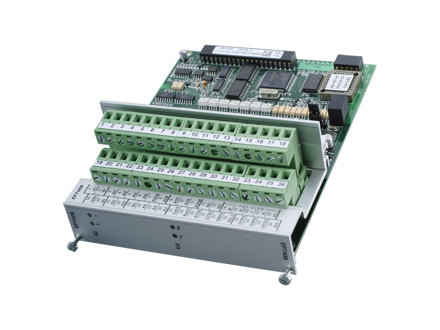

Specifications for EXOflex 8 Mixed I/O and Serial PIFA (2 DI / 4 AI / 2 AO)
| Inputs/outputs (I/Os) |
2 DI with standard functionality (filtering, on/off delay, operating time-measurement). 4 AI with possibility to set the measuring ranges individually. 2 AO. |
| Communication |
1 serial port (Port 3), switchable between RS232, RS485 (EXOline) and hlEXOline. Can be complemented with option cards for modem, KNX, SIOX, etc. Can also be supplemented with an external M-Bus/SIOX connection. |
| Digital inputs (DI) |
Signal levels 0 V/24 V DC or floating switch |
| Analogue inputs (AI) |
0...20 mA, 0...10 V, 0...200 mV, PT100, PT1000, Ni1000 DIN, LG-Ni1000, resistance 0...2000 Ω, etc. Accuracy: 0.1 % of the measuring range, 12-bit A/D converter with digital filter, scaling factor and offset, monitoring of the measuring range. |
| Analogue outputs (AO) |
0...10 V DC, max. 20 mA, 11-bit resolution, scaling factor and offset, ramp generation, settable offline and power-up actions. |
