Experience unmatched control and flexibility with Add:IO units – where advanced modularity meets all-encompassing functionality and cost efficiency.
Add:io, additional I/O units
Elevate your system’s versatility with Add:IO units, designed for effortless integration with EXOcompact and EXOclever controllers.
- Flexible expansion: Boost your EXOclever controller with unlimited I/O connections or extend your EXOcompact controller by up to 50 I/O connections.
- All-in-one functionality: The Add:IO units feature a comprehensive range of inputs and outputs, including:
- DI (Digital Inputs)
- DO (Digital Outputs)
- UI (Universal Inputs): Analog Inputs (AI) and Digital Inputs (DI)
- UO (Universal Outputs): Analog Outputs (AO) and Digital Outputs (DO)
- Compact and efficient: Designed to fit together seamlessly, the Add:IO units offer a space-saving solution that optimizes your system’s footprint.
Experience unmatched control and flexibility with Add:IO units – where advanced modularity meets all-encompassing functionality and cost efficiency.
Navigate on this page
Articles
(5 st)-

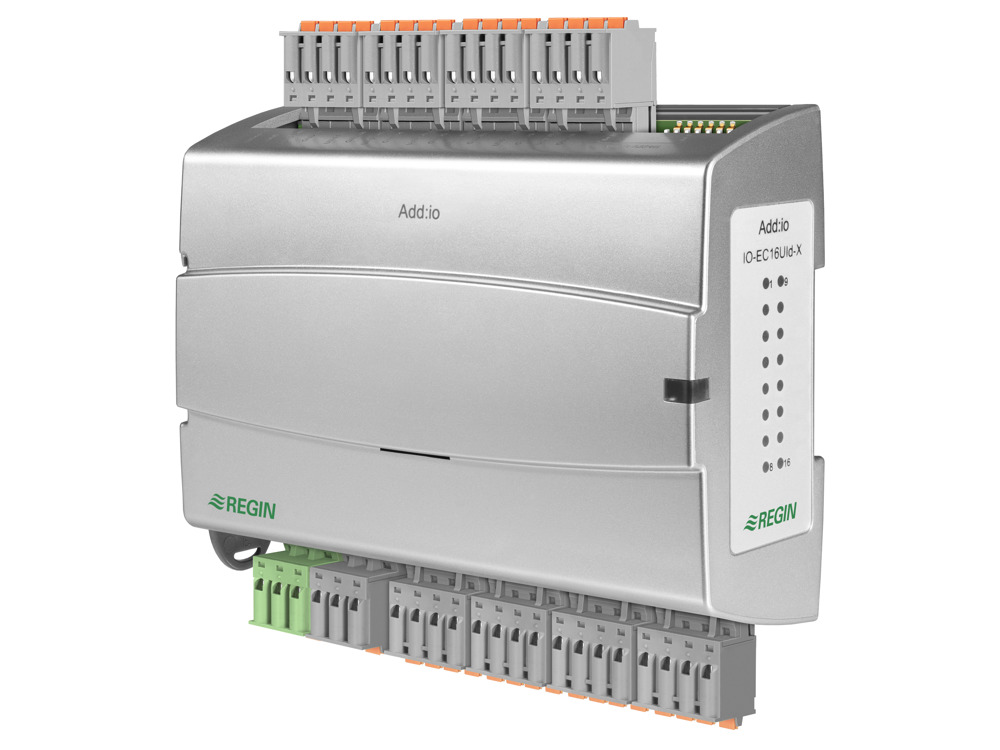

IO-EC16UID-XAdd:IO, 16 UId Universal inputs (pt1000, 0-10V, 4..20mA, Digital input)- Power Supply
- 24VAC/DC (18...26 V AC 50Hz / 22...30 V DC), 7.8 VA
- Dimensions, external (WxHxD)
- 140x136x46 mm
- UI
- 16
- DI
- 0
- UO
- 0
- DO
- 0
-
IO-EC8UID8UOB-XAdd:IO, 8 Universal inputs UId, 8 Universal outputs UOb Cost-effective solution: This Add:IO unit is specifically designed to be the last unit in your setup, making it a cost-effective choice. While other Add:IO units may be larger and focused on specific signal types, this unit efficiently handles the last signals and provides additional spare capacity.
- Power Supply
- 24VAC/DC (18...26 V AC 50Hz / 22...30 V DC), 7.8 VA
- Dimensions, external (WxHxD)
- 140x136x46 mm
- UI
- 8
- DI
- 0
- UO
- 8
- DO
- 0
-
IO-EC16UOB-XAdd:IO, 16 UOb Universal outputs (0-10V, Digital output)
- Power Supply
- 24VAC/DC (... V AC 50Hz / ... V DC), 7.8 VA
- Dimensions, external (WxHxD)
- 140x136x46 mm
- UI
- 0
- DI
- 0
- UO
- 16
- DO
- 0
-
IO-EC32DIB-XAdd:io, 32 Digital inputs DIb (connected to GND)
- Dimensions, external (WxHxD)
- 140x136x46 mm
- UI
- 0
- DI
- 32
- UO
- 0
- DO
- 0
-
IO-EC16DOE-XAdd:IO, 16 Digital outputs DOe
- Dimensions, external (WxHxD)
- 140x136x46 mm
- UI
- 0
- DI
- 0
- UO
- 0
- DO
- 16
Specifications
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…95 % RH |
| Storage temperature | -20…70 °C |
| Mounting | DIN-rail |
| Weight, incl. packaging | 0.3 kg |
| Terminal block width | 5 mm |
| Terminal type | Spring load terminal |
| Detachable terminal | Yes |
| Terminal wire size | 1.5 mm² |
