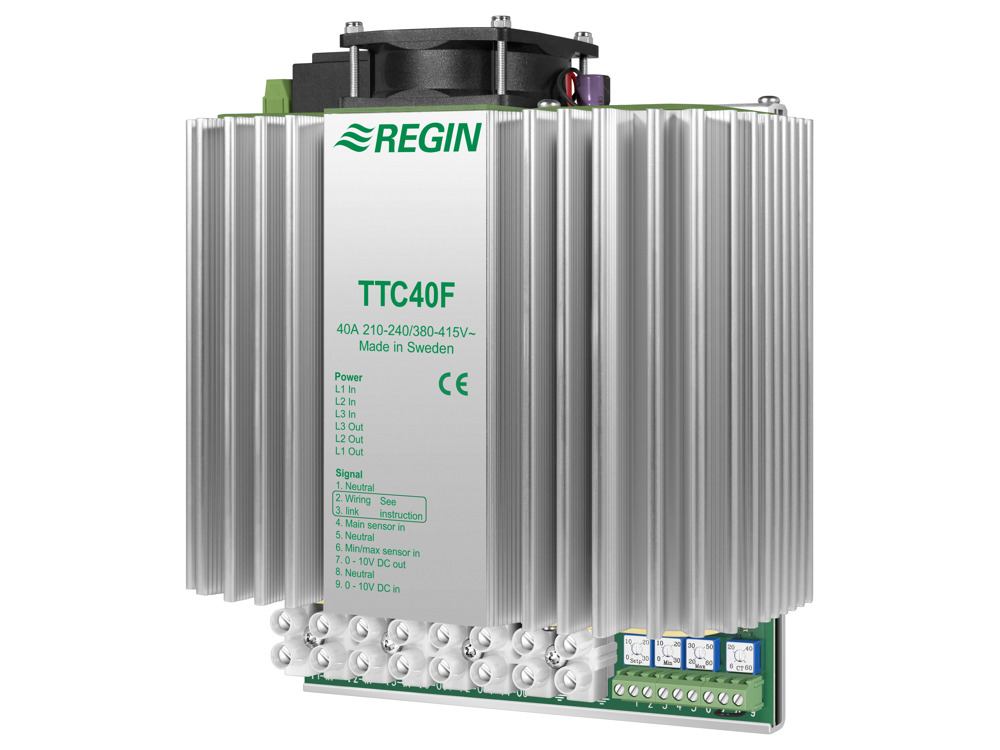

TTC40F Electric heating controller for DIN-rail mounting, 3-phase, 210...415 V, 40 A
Electric heating controller with temperature control
Navigate on this page
Specifications
| Controller Type | Electrical heating |
|---|---|
| Power Supply | 230 V AC, 400 V AC |
| Mounting | DIN-rail |
| Display | No |
| Power Supply | 3-phase, (210...255 V AC/380...415 V AC) Automatic adaptation |
| Ambient temperature | 0…40 °C °C |
| Dimensions, external (WxHxD) | 195x220x95 mm |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0…90 % RH |
| Storage temperature | -40…50 °C °C |
| Mounting | DIN-rail |
| Analogue inputs type (AI) | Control signal 0-10VDC, Main sensor and min/max-sensor (Regin NTC) |
| Digital outputs type (DO) | Triac 40A(Min 4A)/Phase |
